Interior Liquid Line
INTERIOR LIQUID LINE
WARNING: Review safety precautions and warnings before performing this procedure. Failure to follow the warnings and cautions may result in serious or fatal injury.
1. Disconnect and isolate the negative battery cable.
2. Recover the refrigerant from the rear refrigerant system.
3. Remove the rear roof ducts.
4. Remove the front and center headliner panels.

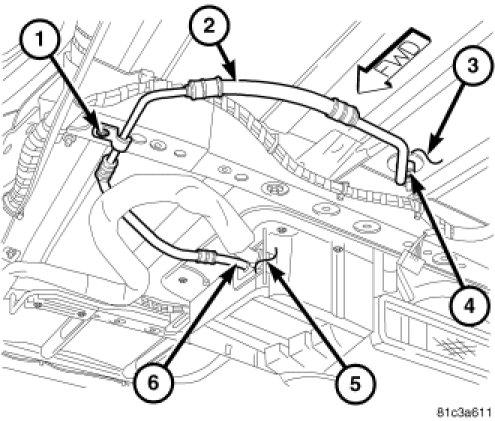

5. Remove the nut that secures the interior liquid line (2) to the rear expansion valve (5).
6. Disconnect the interior liquid line from the rear expansion valve and remove and discard the O-ring seal.
7. Remove the bolt (4) that secures the interior liquid line to the exterior liquid line (3) at the roof panel.
8. Disconnect the interior liquid line from the exterior line and remove and discard the O-ring seal.
9. Remove the screw (1) that secures the interior liquid line to the roof brace and remove the interior liquid line from the vehicle.
10. Install plugs in, or tape over the opened interior liquid line fittings and the rear expansion valve port.
