Instrument Cluster / Carrier: Locations

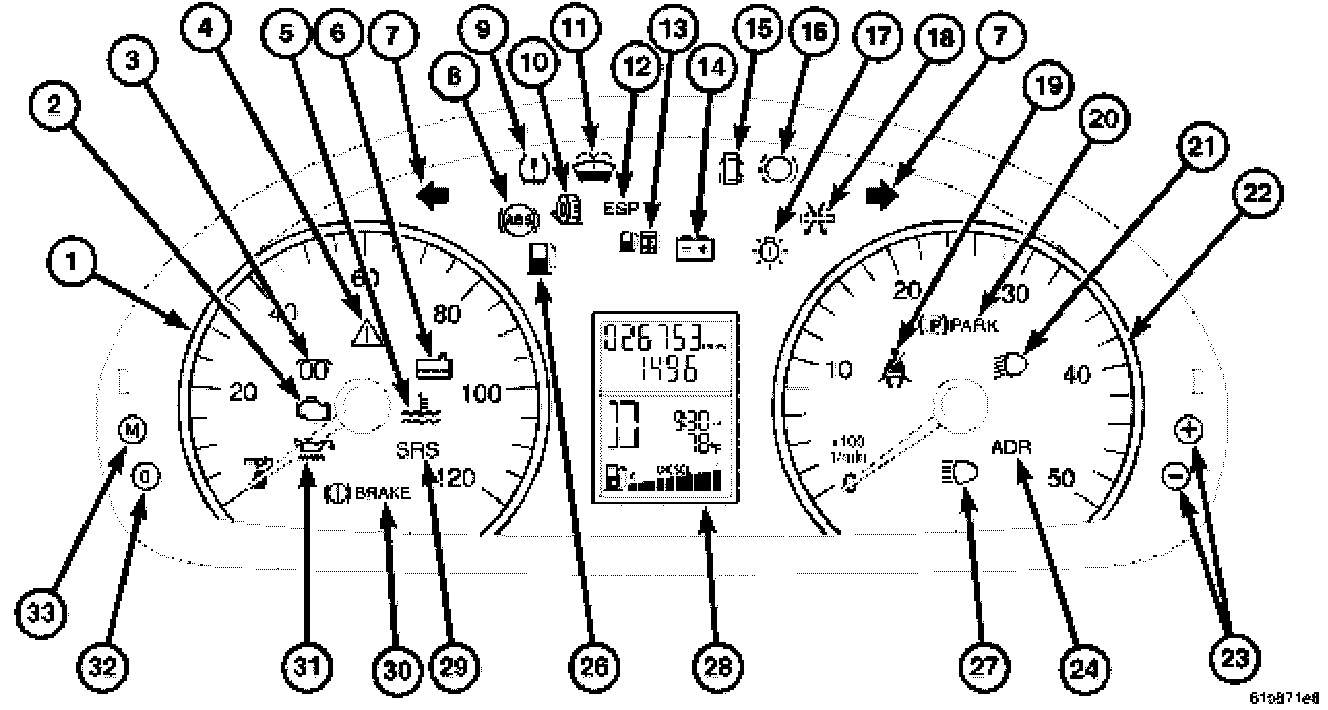

Standard (Without Steering Wheel Switches):

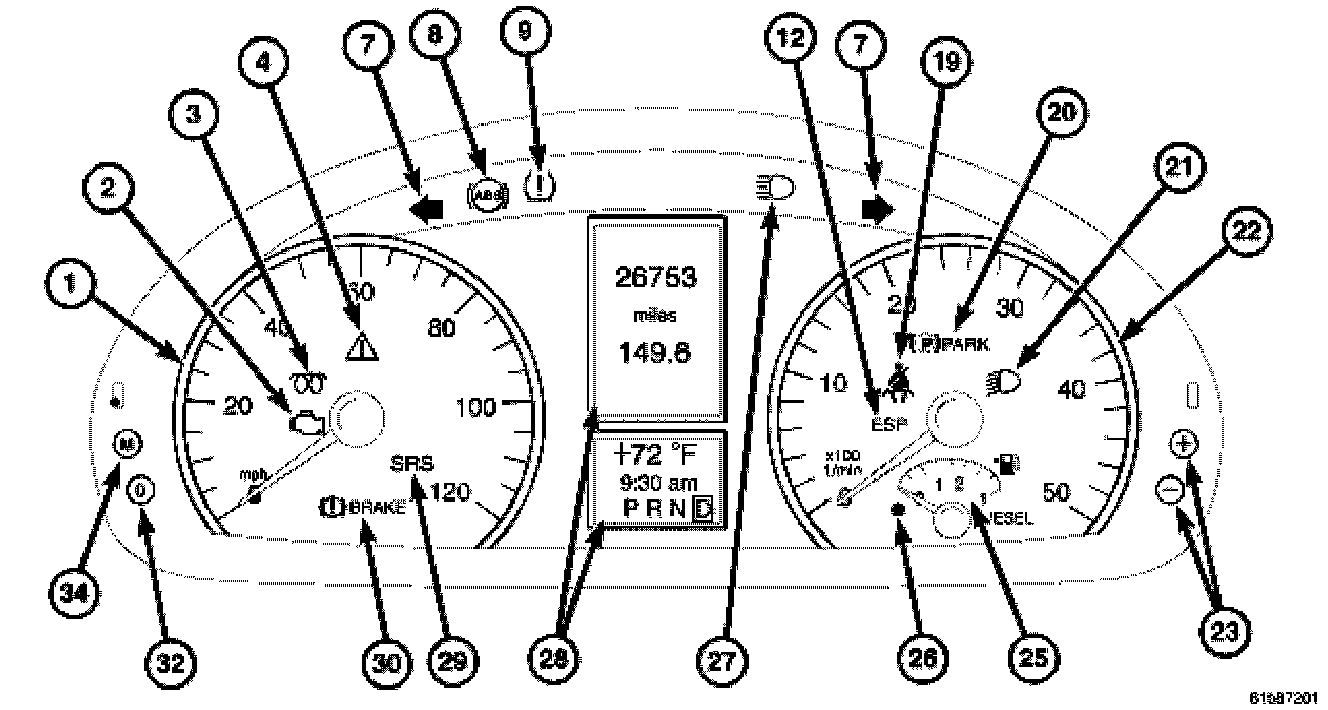

Optional (With Steering Wheel Switches):

1. Speedometer
2. Malfunction Indicator Lamp
3. Wait-To-Start Indicator
4. Traction Control Malfunction Indicator
5. Engine Coolant Temperature Indicator
6. Coolant Low Indicator
7. Turn Signal (Right and Left) Indicators
8. Antilock Brake System (ABS) Indicator
9. Tire Pressure Monitor (TPM) Indicator
10. Traction Control (ASR) Indicator
11. Washer Fluid Indicator
12. Electronic Stability Program (ESP) Indicator
13. Water-In-Fuel Indicator
14 Charging Indicator
15. Ajar Indicators
16. Brake Wear Indicator
17. Lamp Out Indicator
18. Air Filter Indicator
19. Seatbelt Indicator
20. Park Brake Indicator
21. Low Beam Indicator
22. Tachometer
23. Plus (+) and Minus (-) Buttons
24. Constant Engine Speed Indicator
25. Fuel Gauge
26. Low Fuel Indicator
27. High Beam Indicator
28. Liquid Crystal Display/Organic LED Display
29. Airbag Indicator
30. Brake Indicator
31. Engine Oil Level Warning Indicator
32. Zero (Reset) Button
33. Menu (M) Button
34. Engine Oil Level Button
