Removal

LAMP




1. Disconnect and isolate the battery negative cable.

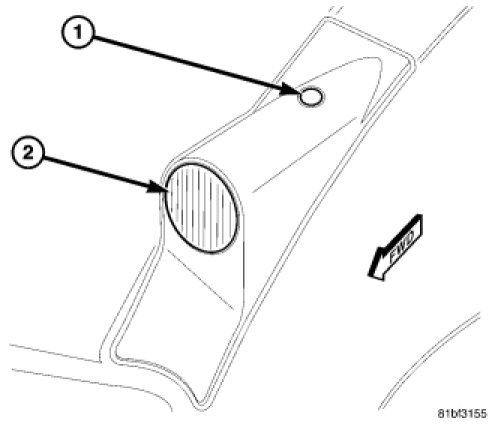

2. Remove the screw (1) that secures the clearance lamp (2) to the roof panel.
3. Pull the clearance lamp forward and away from the roof panel far enough to access and disconnect the vehicle wire harness from the bulb holder connector receptacle.
4. Remove the clearance lamp from the vehicle.
