Disassembly

DISASSEMBLY

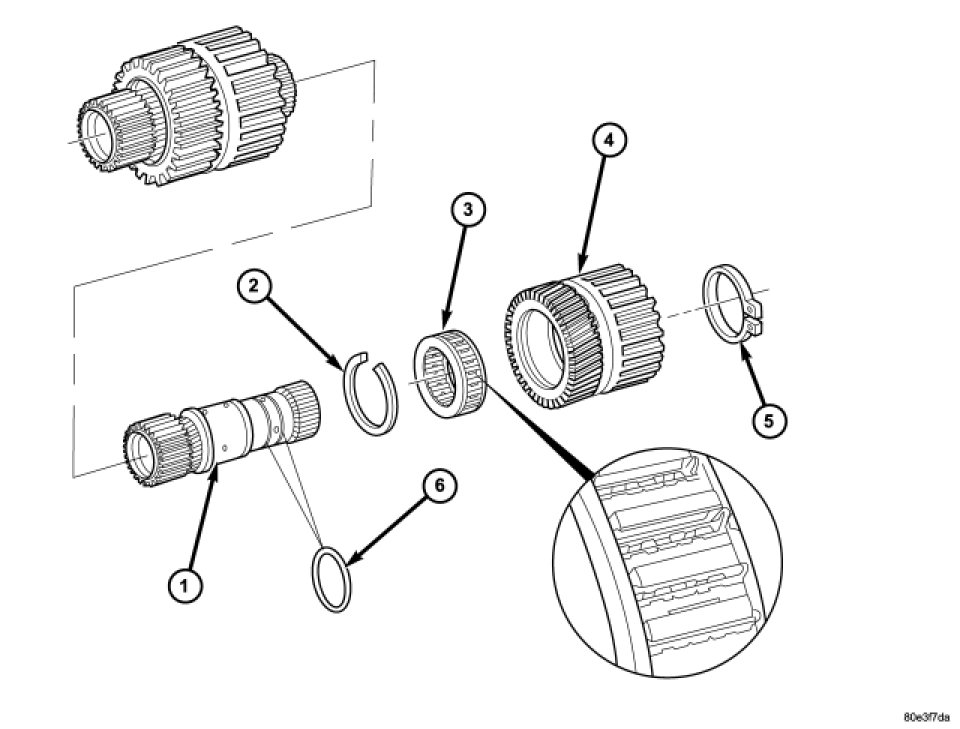

1. Remove retaining ring (5) from hollow shaft (1).
2. Remove rear sun gear (4) with the K3 internally toothed disk carrier and rear freewheeling clutch F2 (3).
3. Remove snap-ring (2) for freewheel.
4. Press freewheeling clutch (3) out of sun gear.
5. Check O-rings (6), replace if necessary.

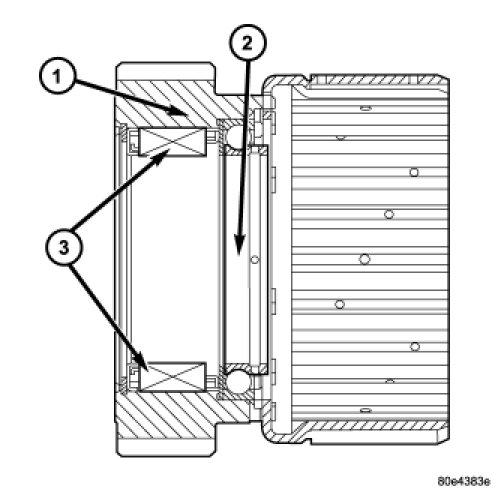

6. Check the anti-friction bearing (2) in the rear planetary sun gear for damage. Replace as necessary.
