ADJUSTMENT

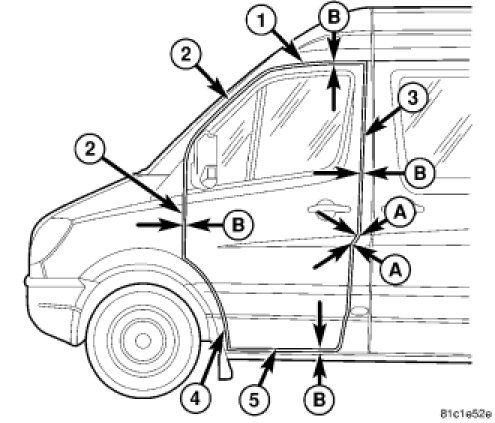

1. Check gaps (B) and ride patterns (A) on the door all the way around.
2. Adjust the door gap and ridge pattern as specified.
3. Adjust the transitions of the front door from flush to maximum 1 mm sinked in, at rear with a protrusion of 0.2 mm to 1 mm (wind noises). Rotary tumbler should engage in the center of the cocking eye.
