Outside Rearview Mirror Glass - Installation

INSTALLATION

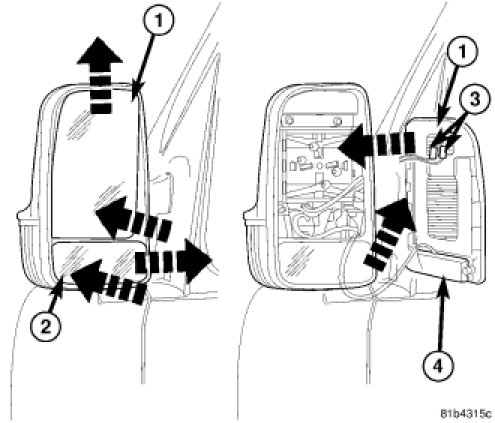

NOTE: The aspherical mirror lens (2) should be anchored securely in the guides.

1. Insert the aspherical mirror lens (2) into the housing and seat fully.
2. Instal the Parktronic LED module (4) and install the screws.
3. Connect the electrical connectors (3).

NOTE: The mirror lens (1) should be anchored securely in the guides.

4. Install the mirror lens (1) and seat fully.
