Removal

REMOVAL




1. Disconnect the remote ground.




2. Remove the lower oil pan.
3. Remove the upper oil pan.

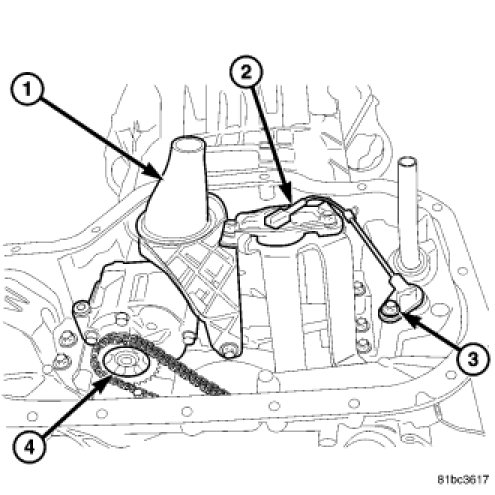

4. Remove the oil suction tube bolt.
5. Press the oil pump chain tensioner to completely remove the tension from the oil pump chain.
6. Remove the oil pump chain.
7. Remove the oil pump bolts.




8. Remove the oil pump and suction tube.
