Installation

3.5L

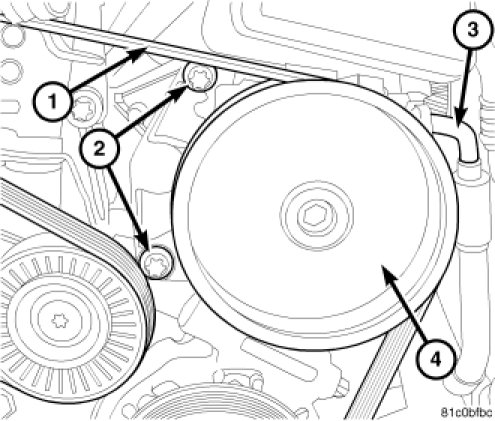

Install the pulley (4) if removed.
1. Install the front and rear pump brackets (if removed).
2. Install the power steering pump to the engine and tighten the bolts (2). Tighten to 21 Nm (15 ft. lbs.).
3. Replace all O-rings and hose clamps.
4. Install the supply hose to the pump and tighten the clamp.
5. Install the high pressure hose (3) to the pump. Tighten to 38 Nm (28 ft. lbs.).
6. Install the power steering drive belt (1).
7. Fill the power steering fluid.
8. Reinstall the washer bottle mounting screws and reconnect the electrical connectors.
