Mirror-Inside Rearview

Component ID: 201
Component : MIRROR-INSIDE REARVIEW

Connector:
Name : MIRROR-INSIDE REARVIEW
Color : BLACK
# of pins : 7
Qualifier : (EXCEPT HANDS FREE)




Pin Circuit Description
1 F202 18BK/PK IGNITION SWITCH OUTPUT (RUN-START)
2 M27 20BK/VT READING/RAIL LAMPS DRIVER
2 Z910 18BK GROUND
3 L1 20BK/LG BACKUP LAMP SWITCH OUTPUT
4 - -
5 - -
6 M24 20BK/OR COURTESY LAMPS DRIVER
7 Z910 18BK GROUND

Component Location - 48

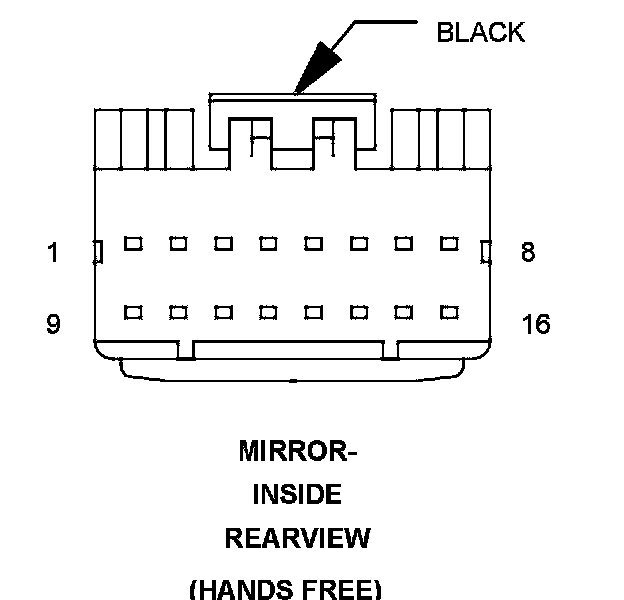

Connector:
Name : MIRROR-INSIDE REARVIEW
Color : BLACK
# of pins : 16
Qualifier : (HANDS FREE)




Pin Circuit Description
1 X712 20BK/DG MICROPHONE 1 IN (+)
2 X792 20BK/TN MICROPHONE IN (-)
3 X722 20BK/LB MICROPHONE 2 IN (+)
4 M27 20BK/VT READING/RAIL LAMPS DRIVER
5 - -
6 - -
7 - -
8 Z910 18BK GROUND
9 L1 20BK/LG BACKUP LAMP SWITCH OUTPUT
10 X835 20BK/GY SENSOR GROUND
11 - -
12 M24 20BK/OR COURTESY LAMPS DRIVER
13 F202 18BK/PK IGNITION SWITCH OUTPUT (RUN-START)
14 - -
15 X793 20BK/YL MICROPHONE FEED
16 - -

Component Location - 48
