Seat Belt Buckle Switch

Component ID: 469

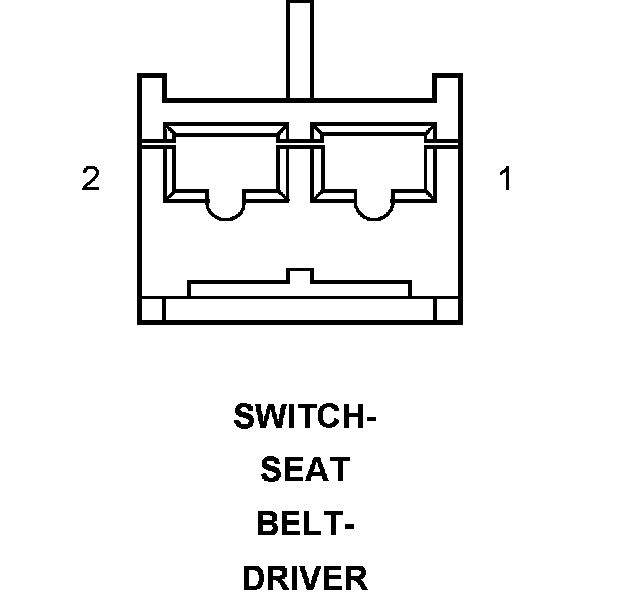

Component : SWITCH-SEAT BELT-DRIVER

Connector:
Name : SWITCH-SEAT BELT-DRIVER
Color :
# of pins : 2

Pin Circuit Description
1 R57 20LG/GY DRIVER SEAT BELT SWITCH SENSE
2 Z914 20BK GROUND

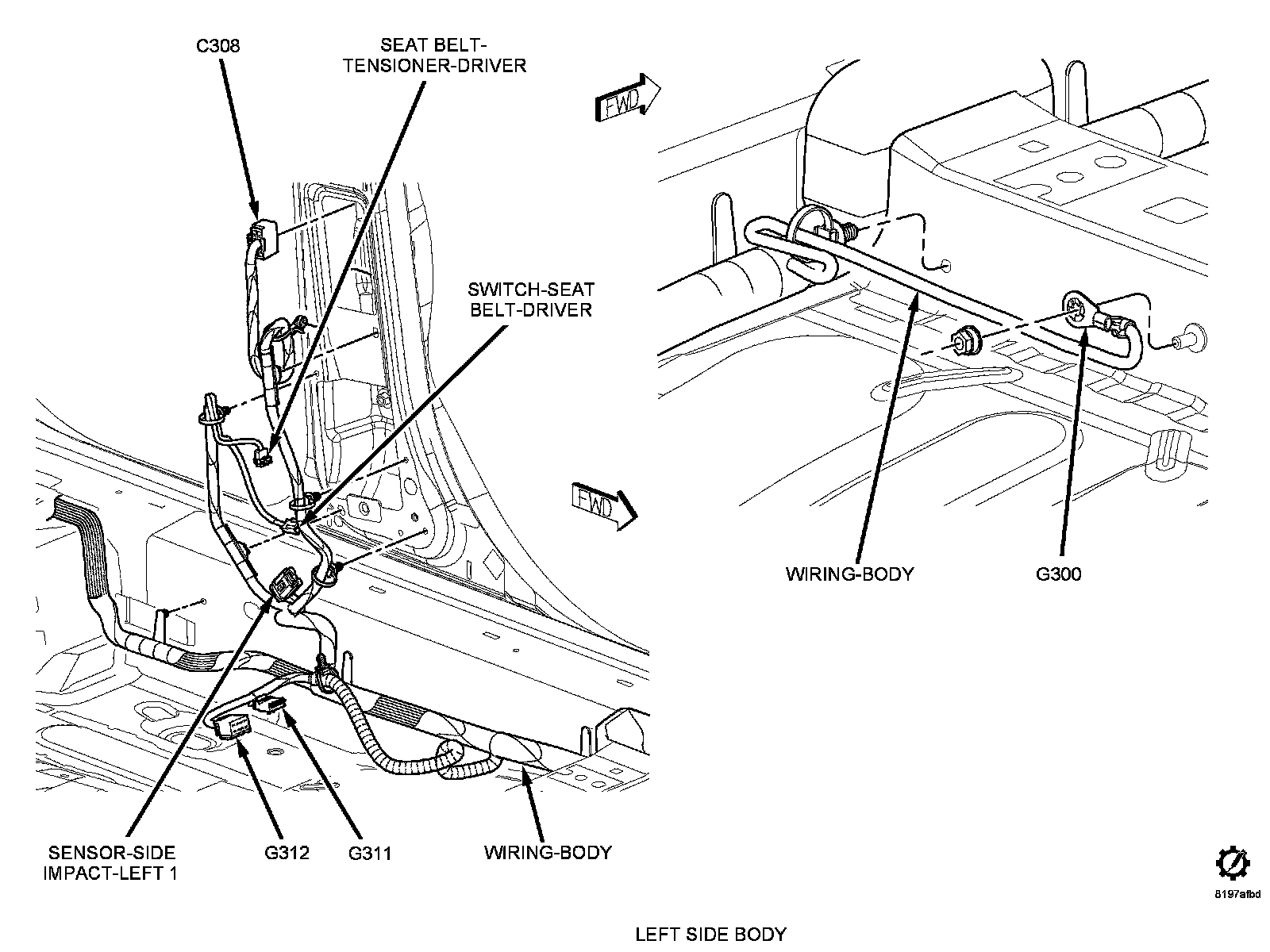

Component Location - 62
