Removal
Removal
REMOVAL
1.
With the help of an assistant, have the assistant hold the opposite side of
hood
that is being worked on.
2.

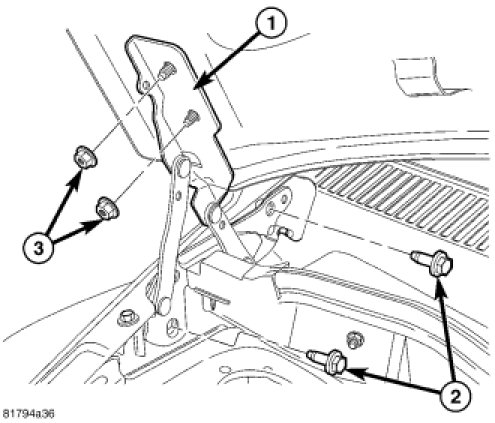

Remove fasteners (2) from hinge (1).
3.
Remove
hood
from hinge (1).
Removal
4.
Repeat step if necessary.
