Installation

INSTALLATION

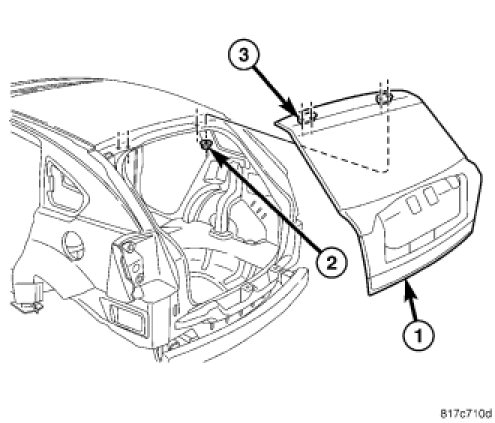

1. With the help of an assistant, place liftgate (1) onto liftgate hinges (3).
2. Torque nuts (2) to 15 Nm (11 ft. lbs).
3. Install prop rods. Installation

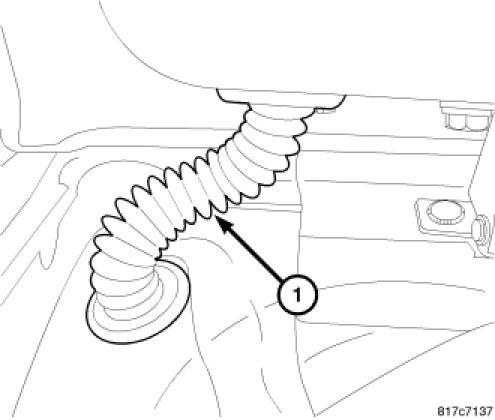

4. Install liftgate harness (1).
5. Install washer hose.
