Module-Occupant Restraint Controller C1 (ORC)

Component ID: 263
Component : MODULE-OCCUPANT RESTRAINT CONTROLLER C1 (ORC)

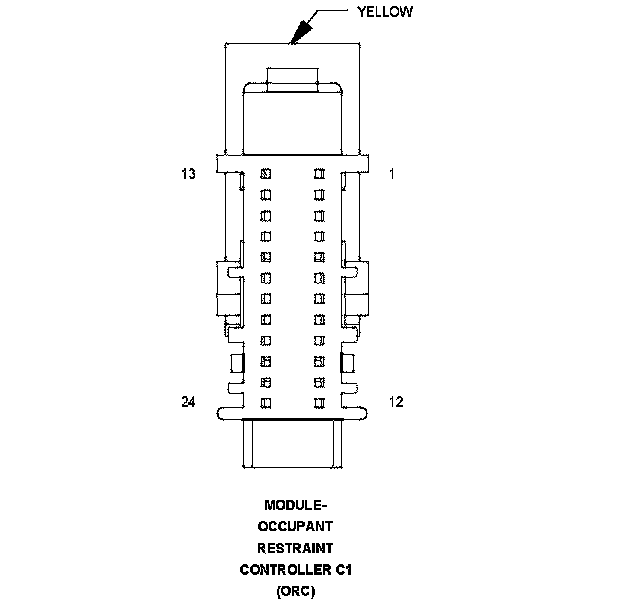

Connector:
Name : MODULE-OCCUPANT RESTRAINT CONTROLLER C1 (ORC)
Color : YELLOW
# of pins : 24




Pin Circuit Description
1 - -
2 - -
3 D55 20WT/OR CAN B BUS (+)
4 D54 20WT/PK CAN B BUS (-)
5 - -
6 - -
7 - -
8 - -
9 R81 20DG/YL LEFT FRONT IMPACT SENSOR GROUND
10 R79 20LB/VT LEFT FRONT IMPACT SENSOR SIGNAL
11 R82 20WT/OR RIGHT FRONT IMPACT SENSOR GROUND
12 R80 20VT/LB RIGHT FRONT IMPACT SENSOR SIGNAL
13 R9 20LB/YL DRIVER KNEE BLOCKER SQUIB LINE 2
14 R11 20LB/DB DRIVER KNEE BLOCKER SQUIB LINE 1
15 - -
16 - -
17 R43 20LG/BR DRIVER SQUIB 1 LINE 2
18 R45 20LG/RD DRIVER SQUIB 1 LINE 1
19 R44 20LB/OR PASSENGER SQUIB 1 LINE 1
20 R42 20LB/BR PASSENGER SQUIB 1 LINE 2
21 R61 20LG/VT DRIVER SQUIB 2 LINE 2
22 R63 20LG/BK DRIVER SQUIB 2 LINE 1
23 R64 20LB/WT PASSENGER SQUIB 2 LINE 1
24 R62 20LB/VT PASSENGER SQUIB 2 LINE 2

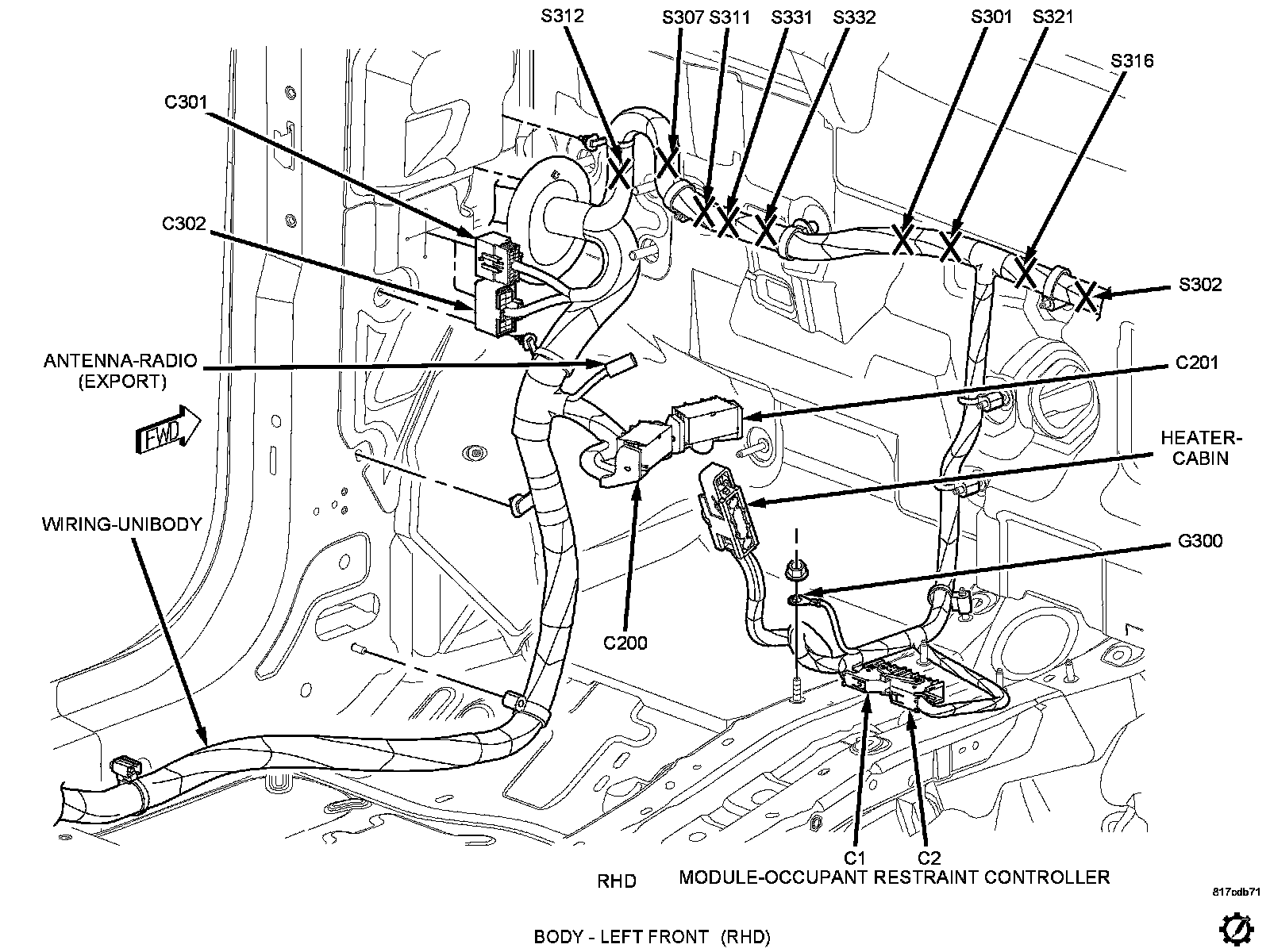

Component Location - 41




Component Location - 42
