Front Lamp Unit - Installation

UNIT

DOMESTIC





1. Position the front lamp unit in its mounting location.

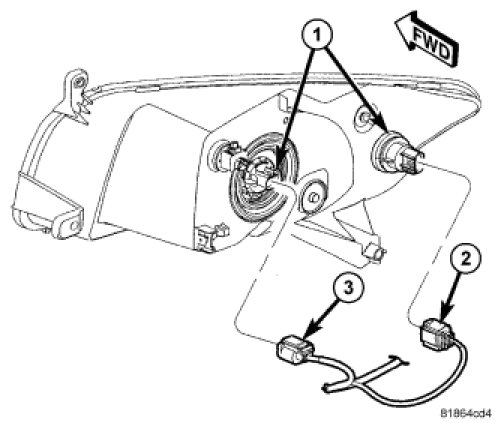

2. Connect the two front lamp unit electrical connectors (2 and 3).




3. Align the ball and socket (1) up and then with a firm push, snap the front lamp unit into place.
4. Install the three screws (3) to the front lamp unit.
5. Install the fascia that was loosened on the repair side. One bolt holding the fascia to the fender at the wheel well opening, the splash shield to fascia screws, and the fasteners along the radiator closure panel Front Fascia - Installation.
6. Connect battery negative cable.
EXPORT





7. On BUX models, there are three electrical connectors (2, 3, and 4) to be connected.
8. Install the export front lamp unit the same way as the domestic unit STEP 1.
