Home >> Dodge and Ram >> 2008 >> Caliber L4-2.0L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Application and ID

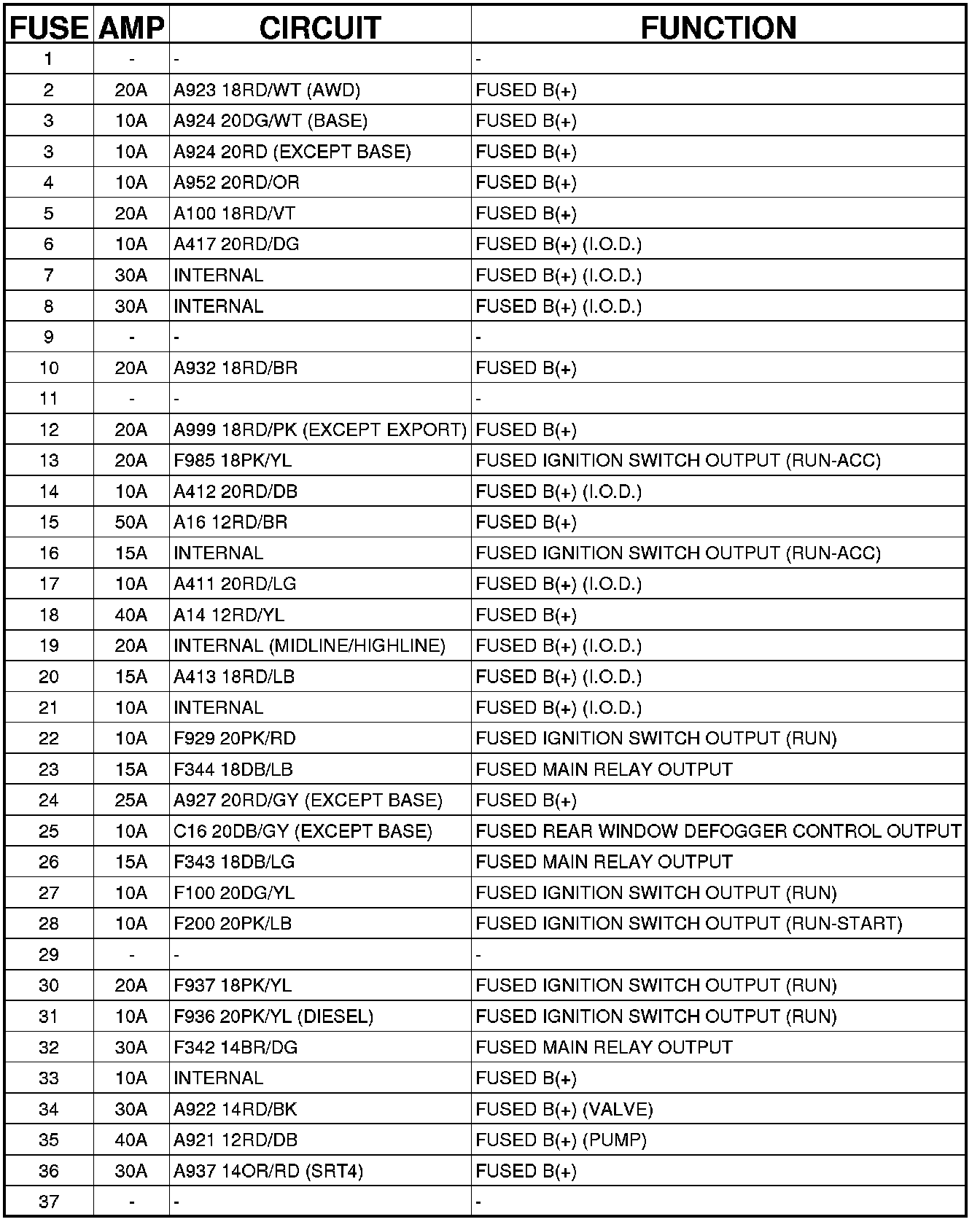

Fuse: Application and ID

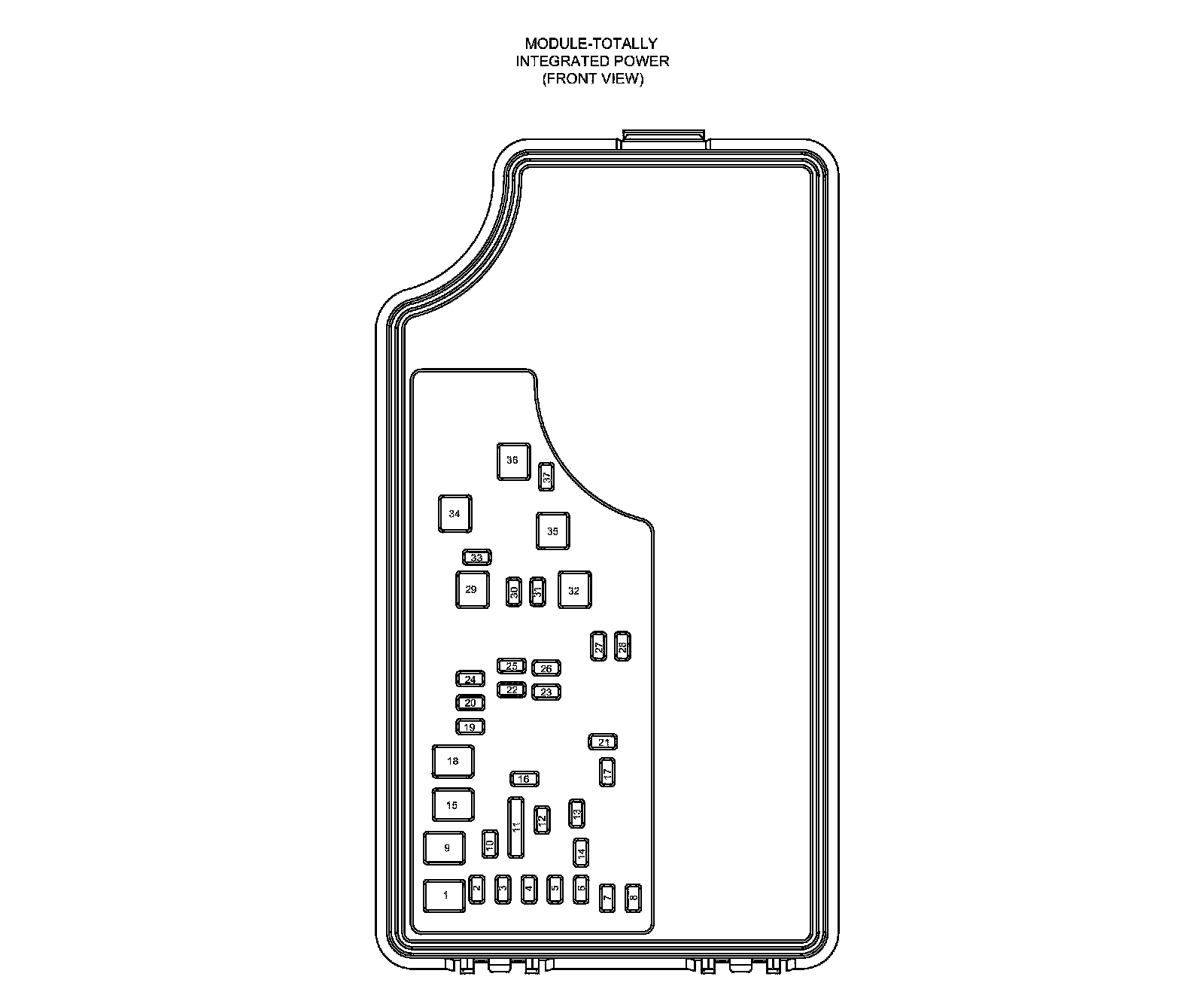

Connector - (IN TIPM)




FUSE 10 - (IN TIPM)
