Driver Seat Recliner Adjuster Motor (Memory) (Front Seat Back Jumper) 4 Way

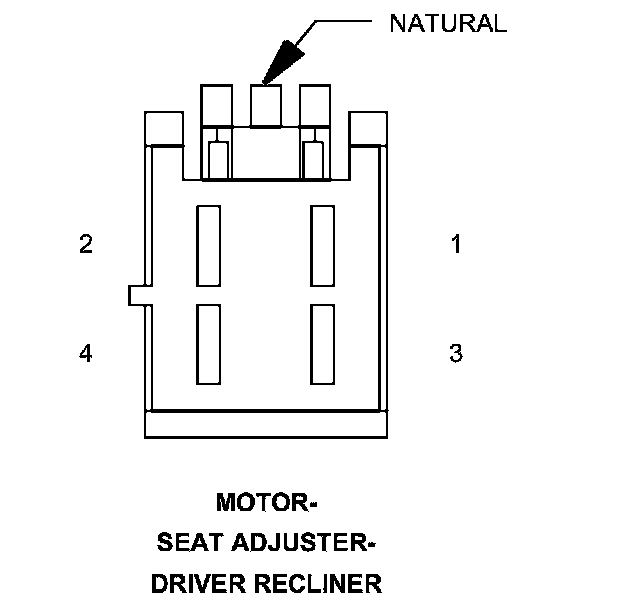

Connector - (FRONT SEAT BACK JUMPER) 4 WAY

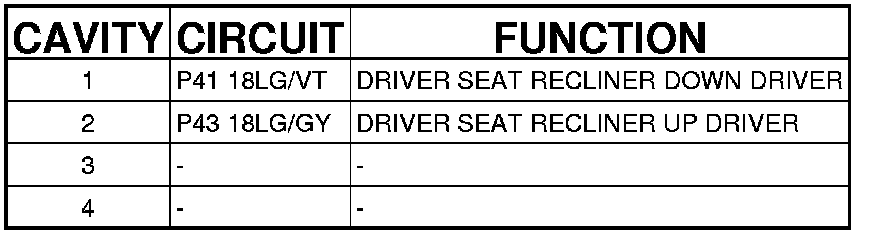

MOTOR-SEAT ADJUSTER-DRIVER RECLINER - (FRONT SEAT BACK JUMPER) 4 WAY
