Power Window Switch
>>
Driver Window/Door Lock Switch (Front Door) 12 Way
Driver Window/Door Lock Switch (Front Door) 12 Way

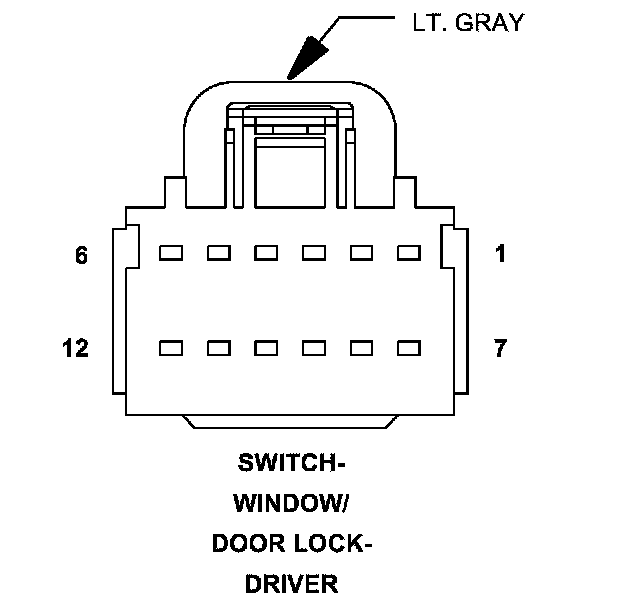

Connector - (FRONT DOOR) 12 WAY
SWITCH-WINDOW/DOOR LOCK-DRIVER - (FRONT DOOR) 12 WAY
