Instrument Cluster Lens - Removal

REMOVAL





1. Disconnect and isolate the negative battery cable.

WARNING: Wait two minutes for the airbag system reserve capacitor to discharge before beginning any airbag system or component service. Failure to do so may result in accidental airbag deployment, which may result in serious or fatal injury.

2. Remove the instrument cluster bezel. Instrument Cluster Bezel - Removal.
3. Remove the cluster retaining screws and remove the cluster from the instrument panel.
4. Remove the lens retaining screws from the back of the cluster.

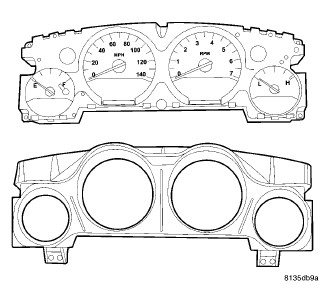

5. Separate the cluster lens from the cluster.
