Right Front Lamp Assembly C2 (Headlamp And Dash) 3 Way
Right Front Lamp Assembly C2 (Headlamp And Dash) 3 Way

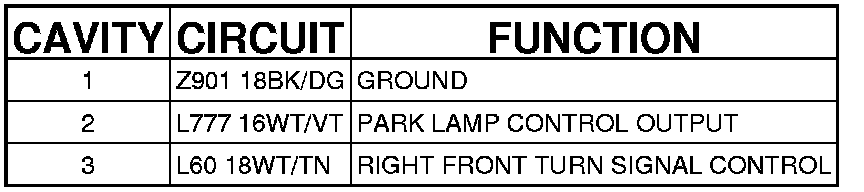

Connector C2 - (
HEADLAMP
AND DASH) 3 WAY
LAMP-ASSEMBLY-RIGHT FRONT - (
HEADLAMP
AND DASH) 3 WAY
