Installation

INSTALLATION





NOTE: Refer to the fuse and relay layout map on the integrated power module (IPM) cover for A/C clutch relay identification and location.

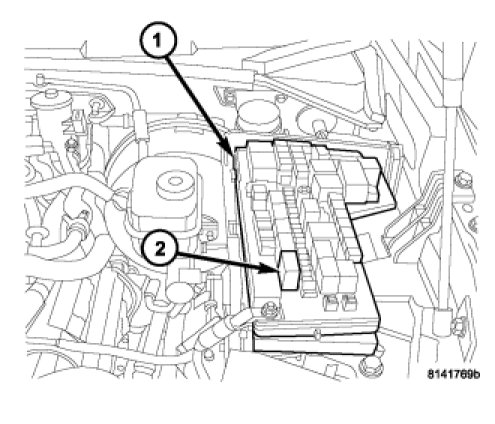

1. Position the A/C clutch relay (2) into the proper receptacle of the IPM (1).
2. Align the A/C clutch relay terminals with the terminal cavities in the IPM receptacle and push down firmly on the relay until the terminals are fully seated.
3. Close the cover of the IPM.
4. Reconnect the negative battery cable.
