Front

INSTALLATION

NOTE: Driver seat shown in illustrations. Passenger seat similar.

1. Position the seat cushion cover (2) to the seat cushion (5) and engage the retaining strips (1) to the clips (3).

2. Install the seat cushion (5) and seat cushion cover (2) onto the seat cushion frame (3) as an assembly.
3. If equipped, position the wire harness (4) to the rear of the seat cushion and connect the wire harness connector to the heated seat element.
4. Engage the J-hook retainers (1) that secure the seat cushion cover to the bottom of the seat cushion frame.

NOTE: Heated seat shown. Non-heated seat similar.

5. Position the seat track assembly (6) to the bottom of the seat cushion frame (5). Make sure the seat track is properly located and that the plastic isolators are correctly installed.
6. Engage the four seat track mounting brackets (3) to the bottom of the seat cushion frame and install the retaining bolts (2). Tighten the bolts to 28 Nm (21 ft. lbs.).
7. If equipped with power seat, install the wire harness (7) to the bottom of the seat cushion frame and to the seat riser (9) and connect the wire harness connectors to the power seat motors (1) and the seat track position sensor (8).
8. If equipped, install the heated seat module (4) onto the bottom of the seat cushion frame.

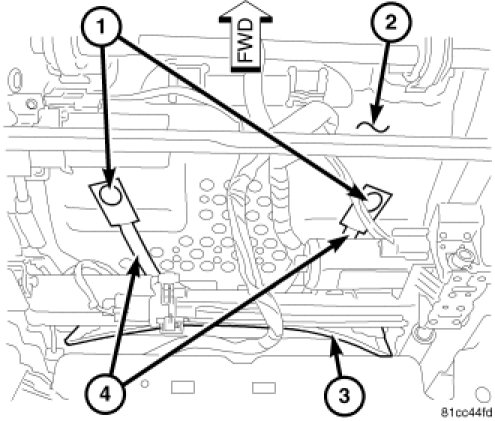

9. Position the seat bottom closeout (3) to the rear of the seat and install the push-pin retainers (1) that secure the two elastic straps (4) to the bottom of the seat cushion frame (2).
10. Install the seat back Seat Back - Installation.
11. Install the seat into the vehicleSeat - Installation.
