Piston Ring: Specifications









3.8L ENGINE

Cylinder Block:






Pistons:






Piston Pins:

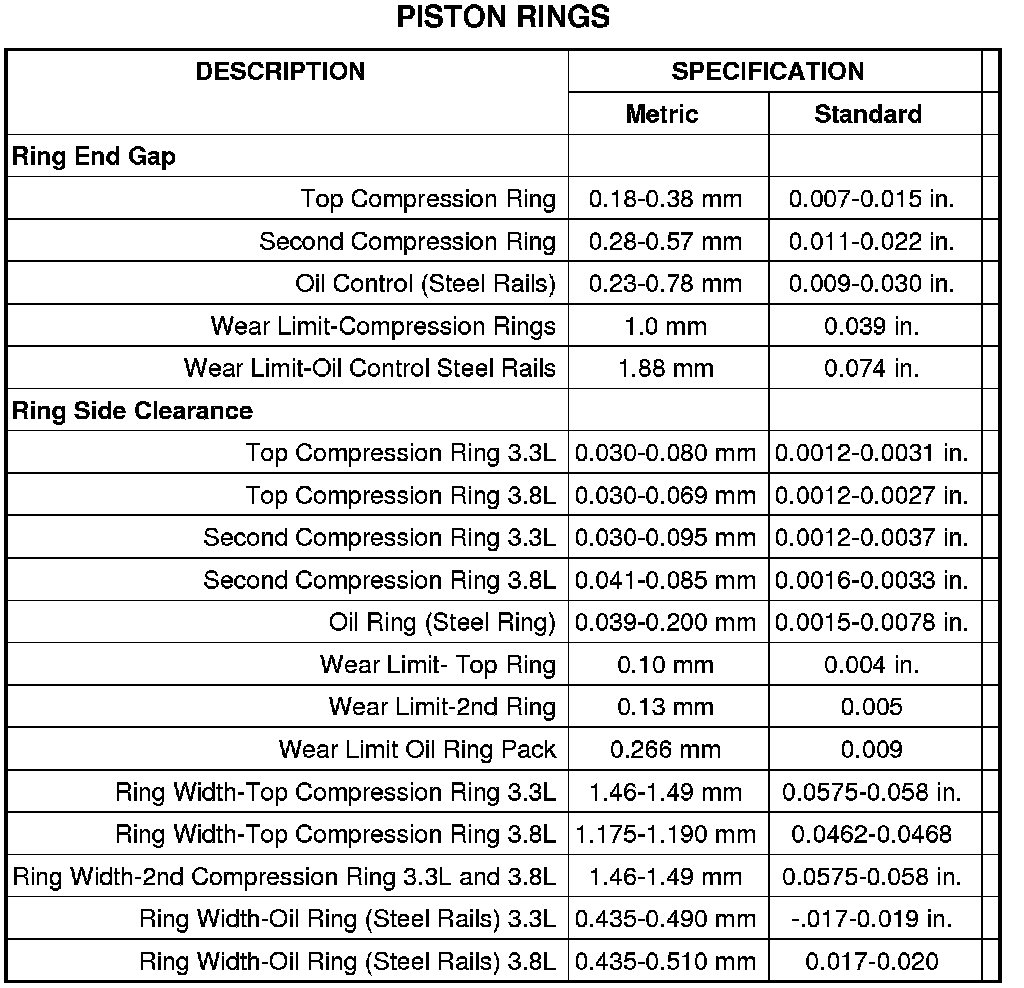

Piston Rings:
