Removal

REMOVAL





1. Install engine support tool 8534 or equivalent.




2. Raise and support the vehicle.

NOTE: Use a grease marker to mark the lower control arm cam bolts with reference points to ease with the wheel alignment.

3. Remove the lower control arms, Front Lower Control Arm - Removal.




4. Remove the stabilizer bar, Front Stabilizer Bar - Removal.




5. Remove the front axle, if equipped, .
6. Remove the power steering rack, Steering Gear - Removal.

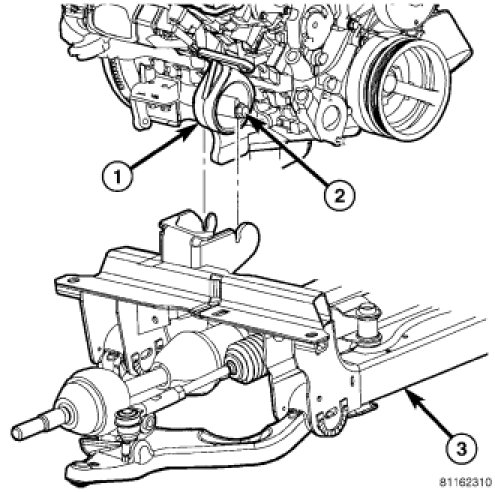

7. Loosen the engine mount through bolts.




NOTE: Using a grease pencil or equivalent, mark the location of the engine support cradle.

8. Support the engine cradle with a suitable lifting device.
9. Remove the engine cradle support bolts and remove the engine cradle.
