Oil Pressure Sender: Diagrams

Component ID: 434

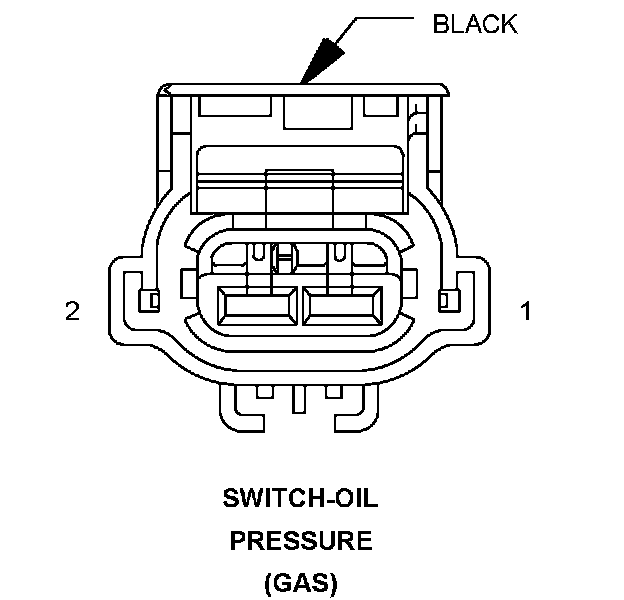

Component : SWITCH-OIL PRESSURE

Connector:
Name : SWITCH-OIL PRESSURE
Color : BLACK
# of pins : 2
Qualifier : (GAS)




Pin Circuit Description
1 G6 16VT/GY EOP SIGNAL
2 - -

Component Location - 15




Component Location - 18
