Engine Specifications







SPECIFICATIONS - 5.9L DIESEL

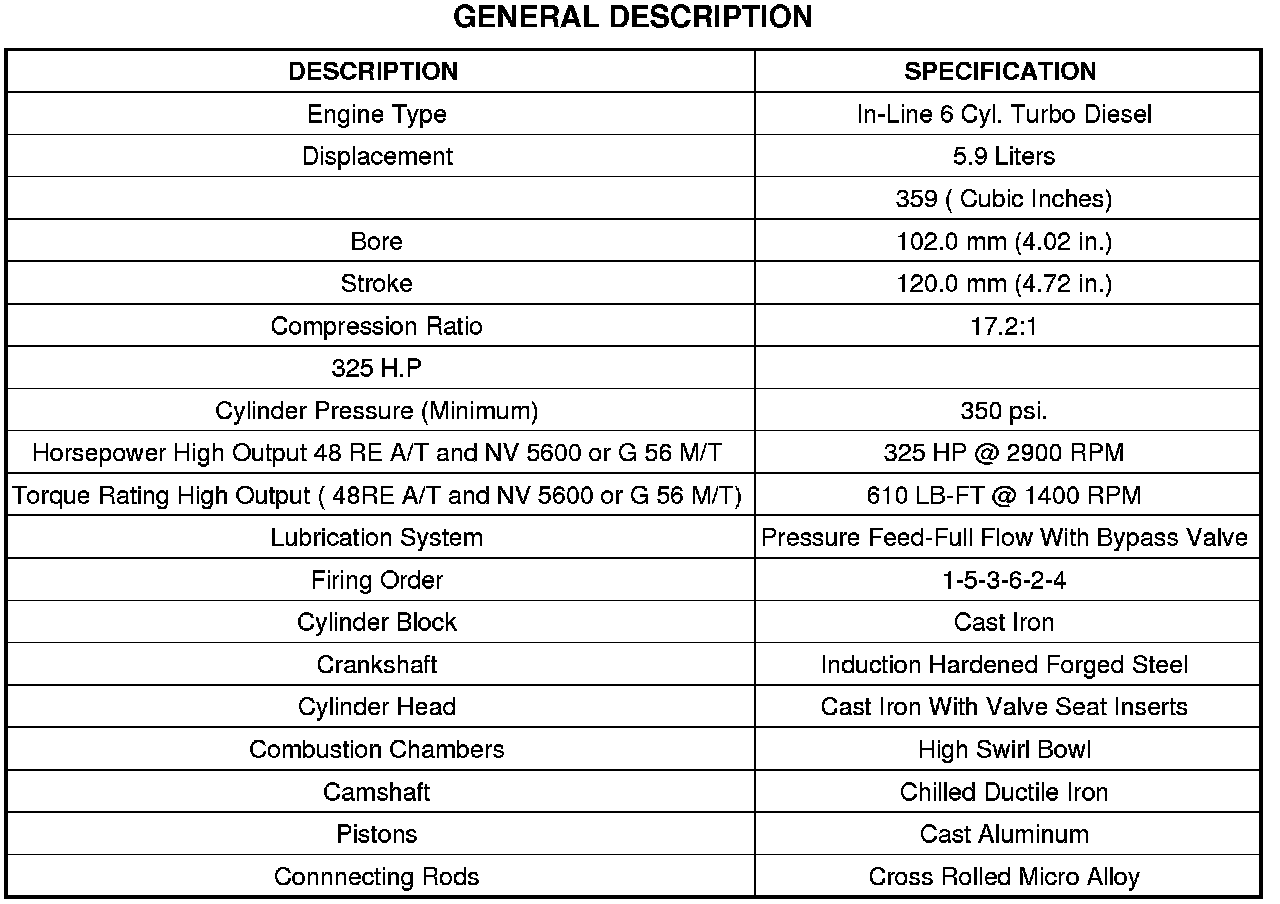

General Description:

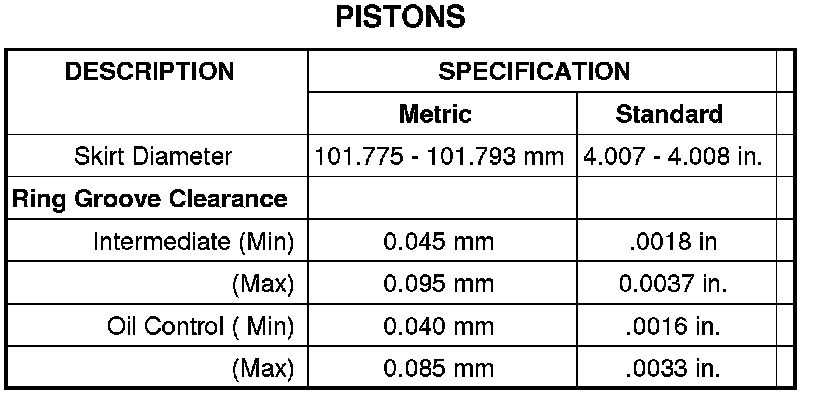

Pistons:

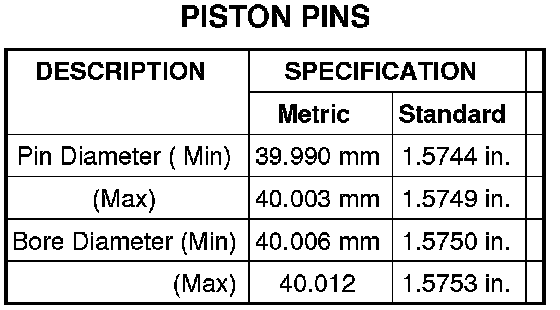

Piston Pins:

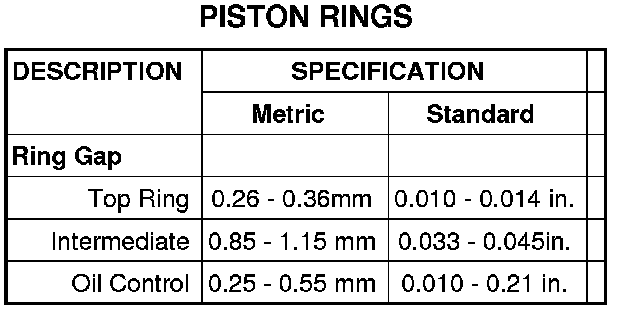

Piston Rings:

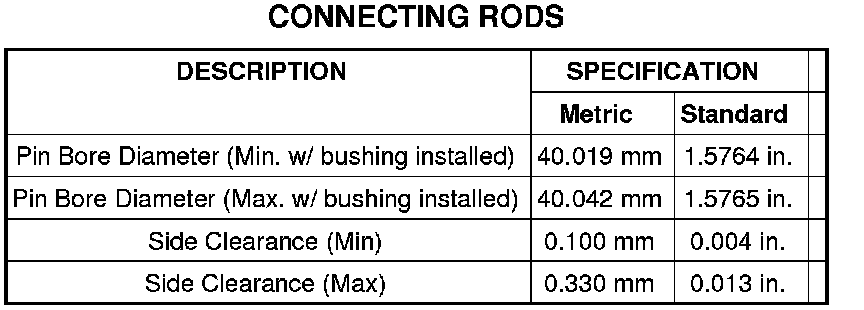

Connecting Rods:

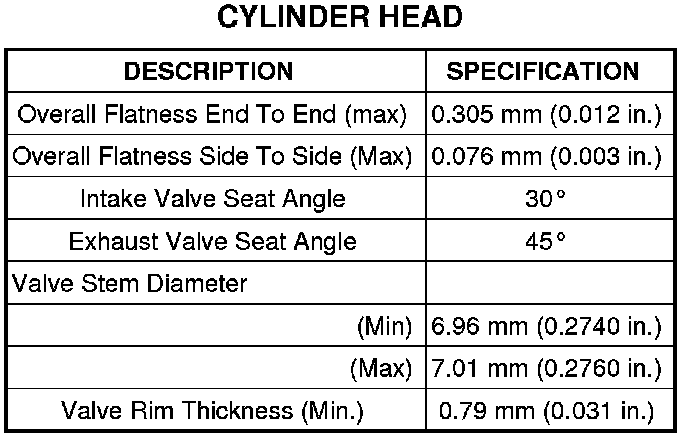

Cylinder Head:

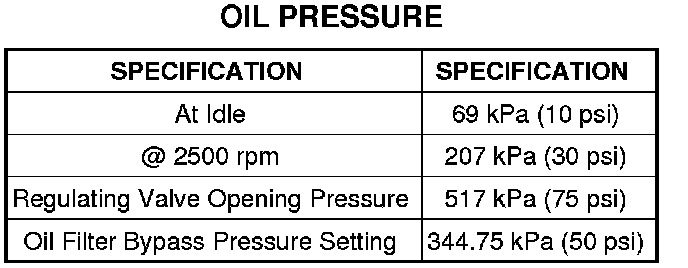

Oil Pressure:
