Front Crossmember - Installation

INSTALLATION





1. Install the crossmember (1).
2. Install the bolts (2);
- On light duty 2WD vehicles, tighten the bolts to 61 Nm (45 ft. lbs.).
- On heavy duty 2WD vehicles, tighten the bolts to 75 Nm (55 ft. lbs.).

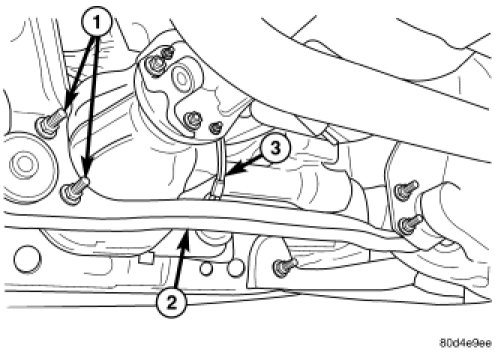

3. On 4WD models, install the crossmember (2).
4. Install the bolts (1) and tighten to 102 Nm (75 ft. lbs.).




5. Install the front skid plate, if equipped (2) Installation
