Engine Oil Pan - Removal

REMOVAL





1. Raise vehicle on hoist.
2. Drain engine oil.
3. Remove flywheel inspection cover (1).




4. Remove oil filter (1).
5. Remove fasteners (2) securing A/C line to oil pan.




6. Remove transmission to oil pan fasteners (1,2).

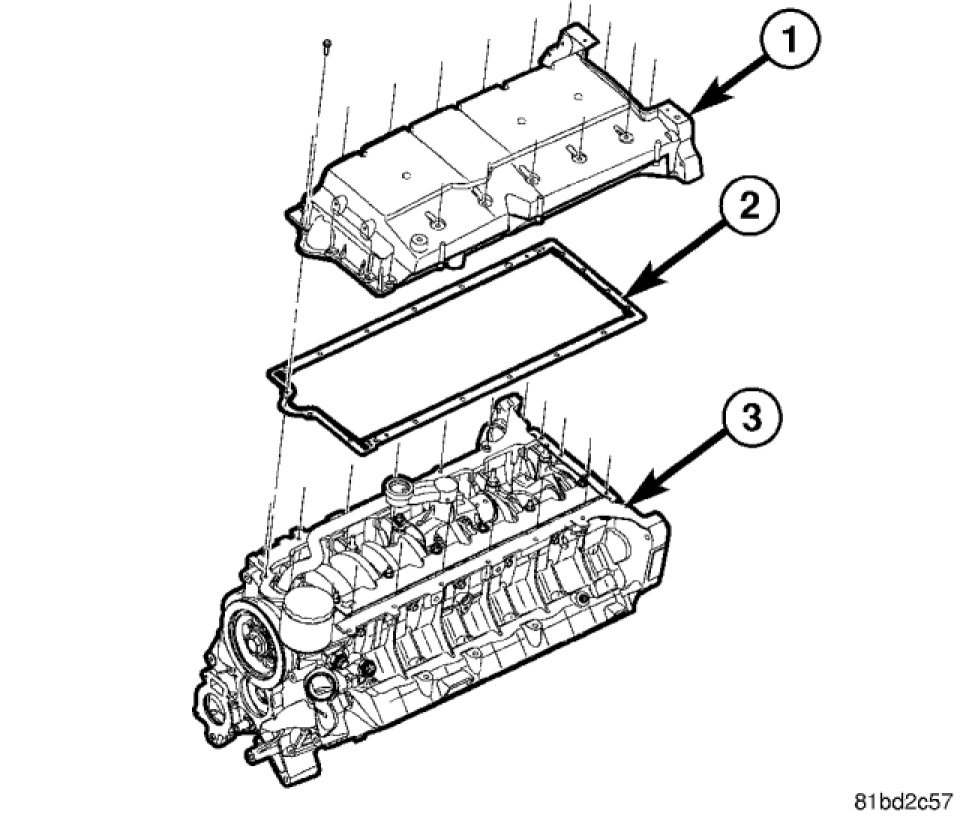

7. Remove oil pan bolts and remove oil pan (1) and gasket (2).

NOTE: Oil pick-up tube must be aligned properly to remove pan. Rock pan from side to side to help align pick-up assembly.

NOTE: Clean and inspect oil pan gasket. The pan gasket can be used again if in good condition.
