B167B

B167B-RIGHT FRONT HEADLAMP LIGHT SOURCE CIRCUIT

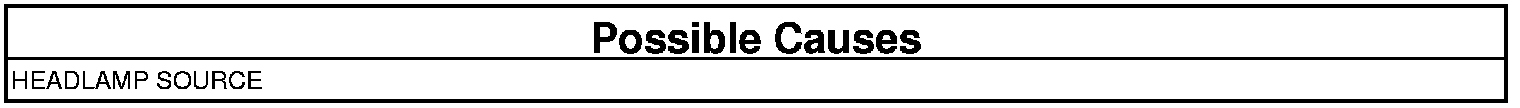

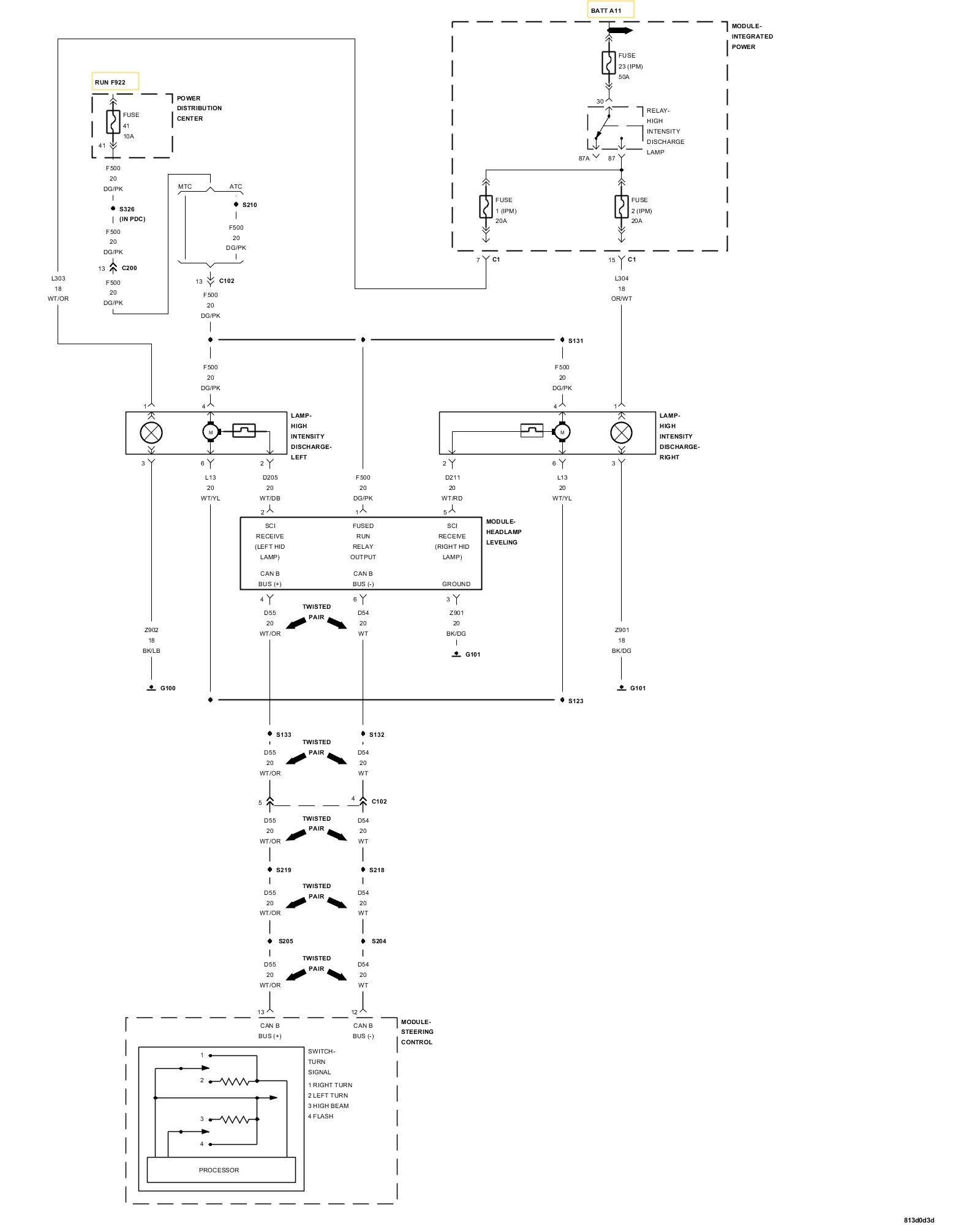

For a complete wiring diagram, refer to the Wiring Information. Electrical Diagrams

- When Monitored:
Continuously with the ignition on.

- Set Condition:
The code will set when the HID Module detects an Inop Headlamp Source.





VERIFY DTC B167B-RIGHT FRONT HEADLAMP LIGHT SOURCE CIRCUIT IS ACTIVE

NOTE: If a DTC is set, erase the DTC and attempt to reset the DTC. If the DTC resets, follow test.

1. This is a Headlamp Source failure.
2. View repair.

Does the DTC reset and read B167B-RIGHT FRONT HEADLAMP LIGHT SOURCE CIRCUIT?

Repair

- Replace the appropriate Headlamp Source.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
