B1C28
B1C28-LEFT SIDE SEAT THORAX SQUIB 1 HIGH

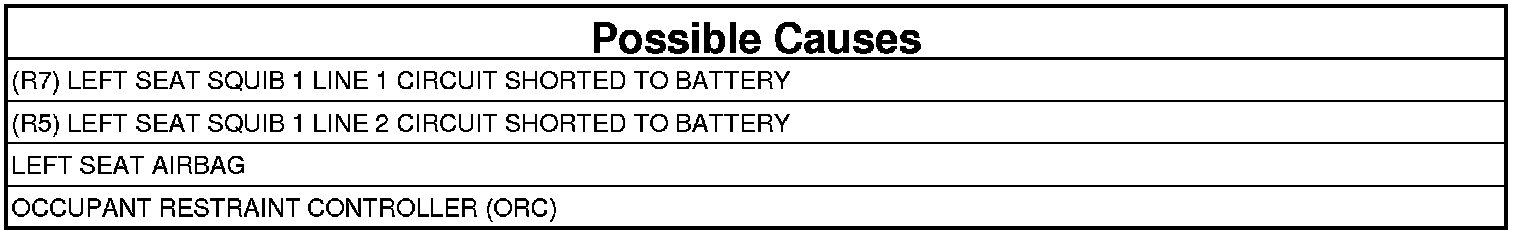

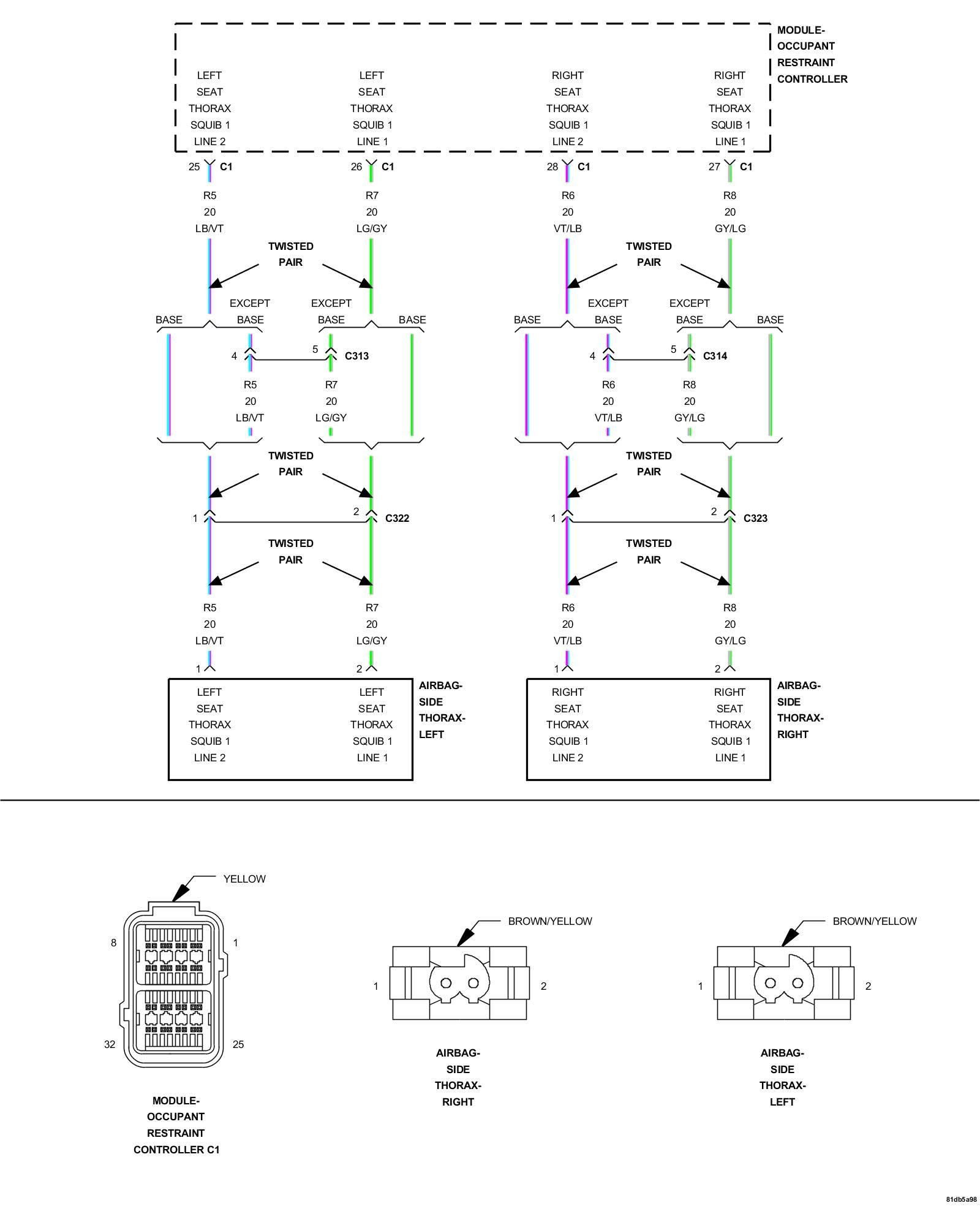

For a complete wiring diagram, refer to the Wiring Information. Electrical Diagrams
Theory of Operation
When powered, the Occupant Restraint Controller (ORC) sends a test current to the squibs to verify the integrity of the squib and wiring. These circuits are maintained in a "floating" configuration at the module (connected to neither power nor ground) as protection against inadvertent deployment. Use of the SRS Load Tool Kit 8443 in the tests below substitutes a suspect squib with a known good component. The use of the SRS Load Tool Adapter provides a test point as well as a method for opening the shorting bar connections within the harness connector. When Monitored:
- When Monitored:
With the ignition on.
- Set Condition:
The Occupant Restraint Controller (ORC) monitors the voltage on the Left Seat Airbag circuits. If voltage is detected on the Left Seat Airbag circuits the ORC will set this DTC.
1. DETERMINE ACTIVE OR STORED DTC
NOTE: Make sure that the battery is fully charged.
1. Turn the ignition on.
Select ACTIVE or STORED DTC:
ACTIVE DTC
- Go To 2
STORED DTC
- Go To 5
2. CHECK FOR SHORTED LEFT SEAT AIRBAG SQUIB
WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
1. Disconnect the Left Seat Airbag harness connector.
WARNING: Do not place an intact undeployed airbag face down on a hard surface, the airbag will propel into the air if accidentally deployed. Failure to follow these instructions may result in possible serious or fatal injury.
NOTE: Check the connectors - Clean and repair as necessary.

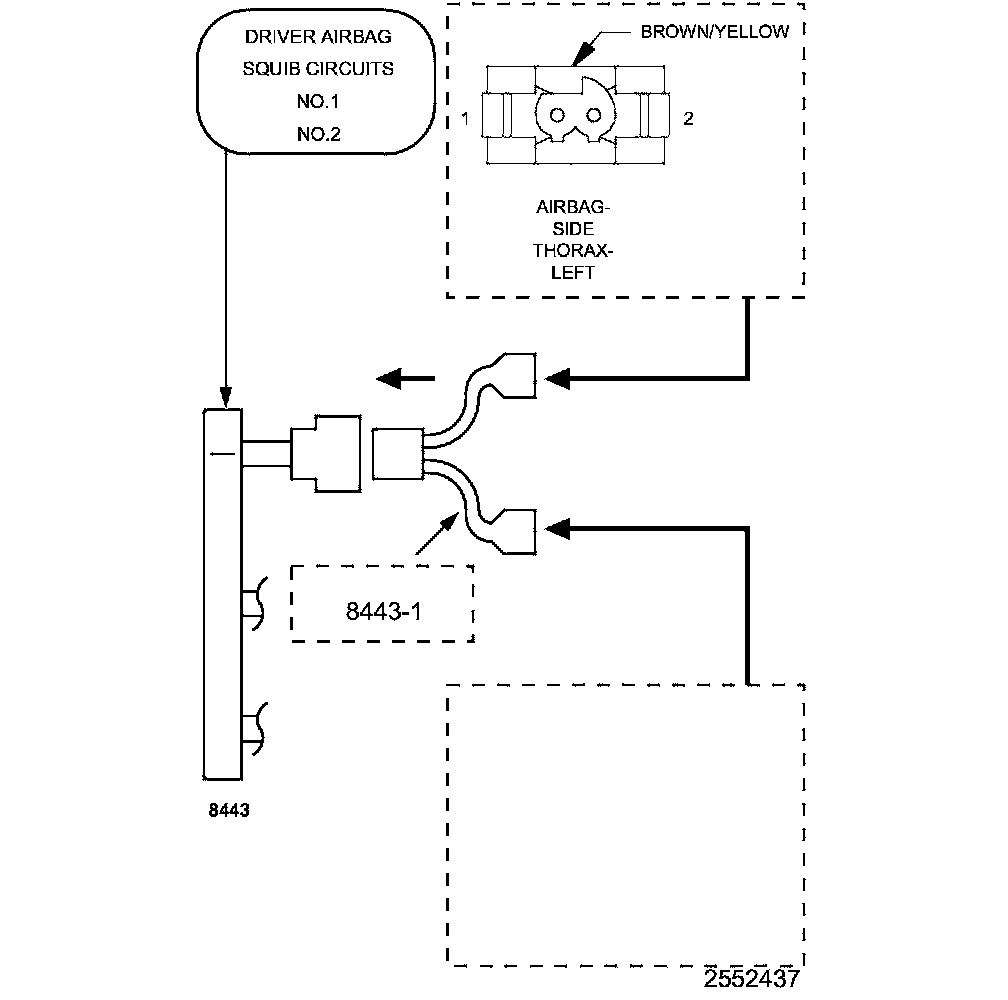

2. Connect the SRS Load Tool Kit 8443 and the SRS Load Tool Jumper 8443-1 to the Left Seat Airbag harness connector.
WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
3. With the scan tool, read the active ORC DTC.
Does the scan tool display : B1C28-LEFT SIDE SEAT THORAX SQUIB 1 HIGH
Yes
- Go To 3
No
- WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
- Replace the Left Seat Airbag.
- Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Restraints System Verification Test.
3. CHECK FOR SHORTED LEFT SEAT AIRBAG SQUIB CIRCUITS IN THE SEAT BACK
WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
1. Disconnect the Left Seat Airbag C322 harness connector (under Left Seat).
NOTE: Check the connectors - Clean and repair as necessary.

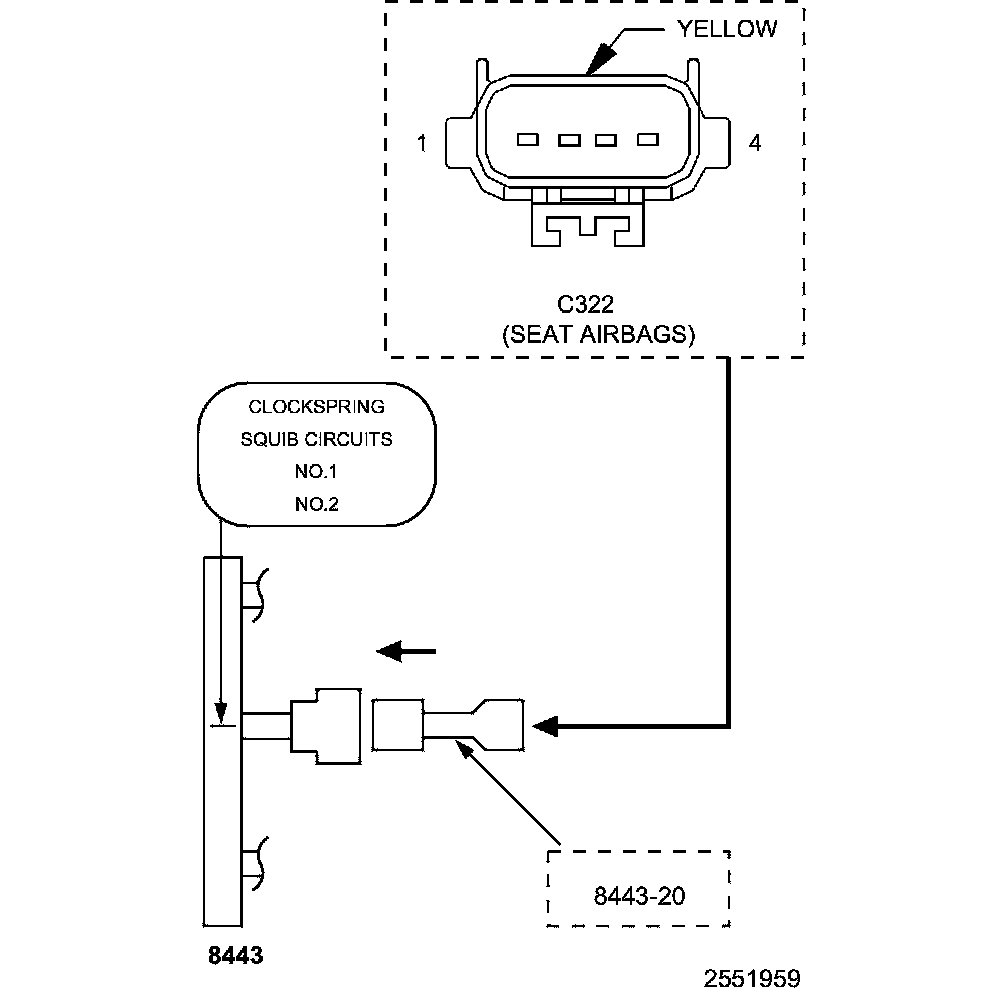

2. Connect the SRS Load Tool Kit 8443 and the SRS Load Tool Jumper 8443-20 to the Left Seat Airbag C322 harness connector.
WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
3. With the scan tool, read the active ORC DTC.
Does the scan tool display : B1C28-LEFT SIDE SEAT THORAX SQUIB 1 HIGH
Yes
- Go To 4
No
- WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
- Repair or replace the Left Seat Airbag wiring harness (Side Airbag Jumper). Left Seat Airbag circuits shorted high between the C322 harness connector and the Left Seat Airbag harness connector.
- Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Restraints System Verification Test.
4. CHECK FOR SHORTED LEFT SEAT AIRBAG SQUIB CIRCUITS IN THE BODY HARNESS TO THE SEAT
WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
1. Disconnect the SRS Load Tool Kit 8443 and the SRS Load Tool Jumper 8443-20 from the C322 harness connector.
2. Disconnect the ORC harness connectors.
NOTE: Check the connectors - Clean and repair as necessary.
3. Connect the ORC 8443-24 Adaptor to the ORC harness connectors.
WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

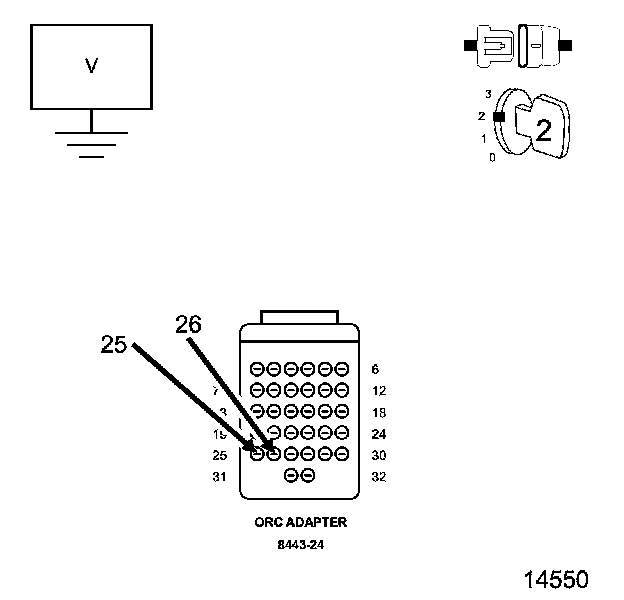

4. Measure the voltage of the (R5) Left Seat Squib 1 Line 2 circuit between the 8443-24 cavity 25 and ground.
5. Measure the voltage of the (R7) Left Seat Squib 1 Line 1 circuit between the 8443-24 cavity 26 and ground.
Is there any voltage present on either circuit?
Yes
- In accordance with Service Information repair or replace the Left Seat circuits. Left Seat circuits short to high between the C322 harness connector and the ORC C1 (32 way) harness connector.
- Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Restraints System Verification Test.
No
- WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
WARNING: If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to follow these instructions may result in possible serious or fatal injury.
- Replace the ORC.
- Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Restraints System Verification Test.
5. CHECKING STORED OR INTERMITTENT CODES
NOTE: Diagnose and repair all active codes before diagnosing stored codes.
1. With the scan tool, record and erase all Airbag System Module DTCs.
WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
2. Using the wiring diagram/schematic as a guide, inspect the related wiring and connectors for chafed, pierced, pinched, and partially broken wires, and for broken, bent, pushed out, corroded, and contaminated terminals. Repair as necessary.
3. Reconnect all disconnected components and harness connectors.
WARNING: Turn the ignition on, then reconnect the 12-volt battery. Wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
4. With the scan tool, monitor for active codes while performing the following:WARNING: Maintain a safe distance from all airbags while performing the following steps. Failure to follow these instructions may result in possible serious or fatal injury.
- Wiggle the wiring harness and connectors of the related airbag circuit.
- Continue the test until either a code becomes active or the problem area is isolated.
5. In the previous steps you have attempted to recreate the conditions responsible for setting the DTC in question/causing the intermittent condition.
Are any ACTIVE DTCs present?
Yes
- Follow the diagnostics of the indicated DTCs. Perform the RESTRAINT SYSTEM VERIFICATION TEST. Restraints System Verification Test.
No
- No problem found at this time. Erase all codes before returning the vehicle to the customer.
