B1D2A

B1D2A-PASSENGER MIRROR VERTICAL MOTOR CONTROL CIRCUIT/PERFORMANCE

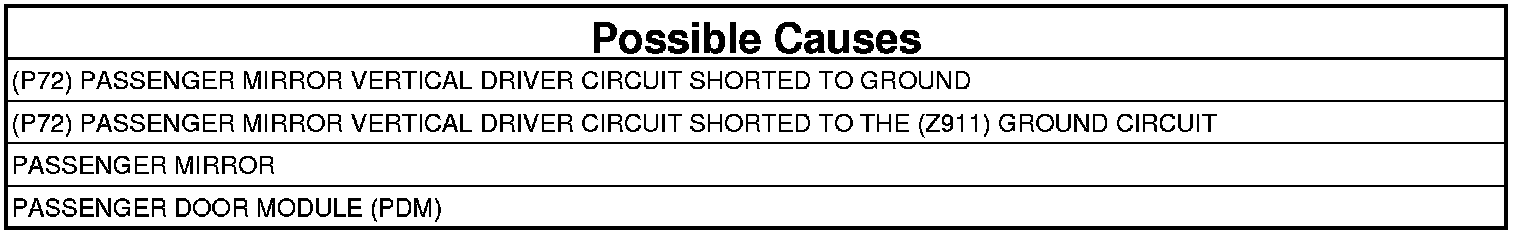

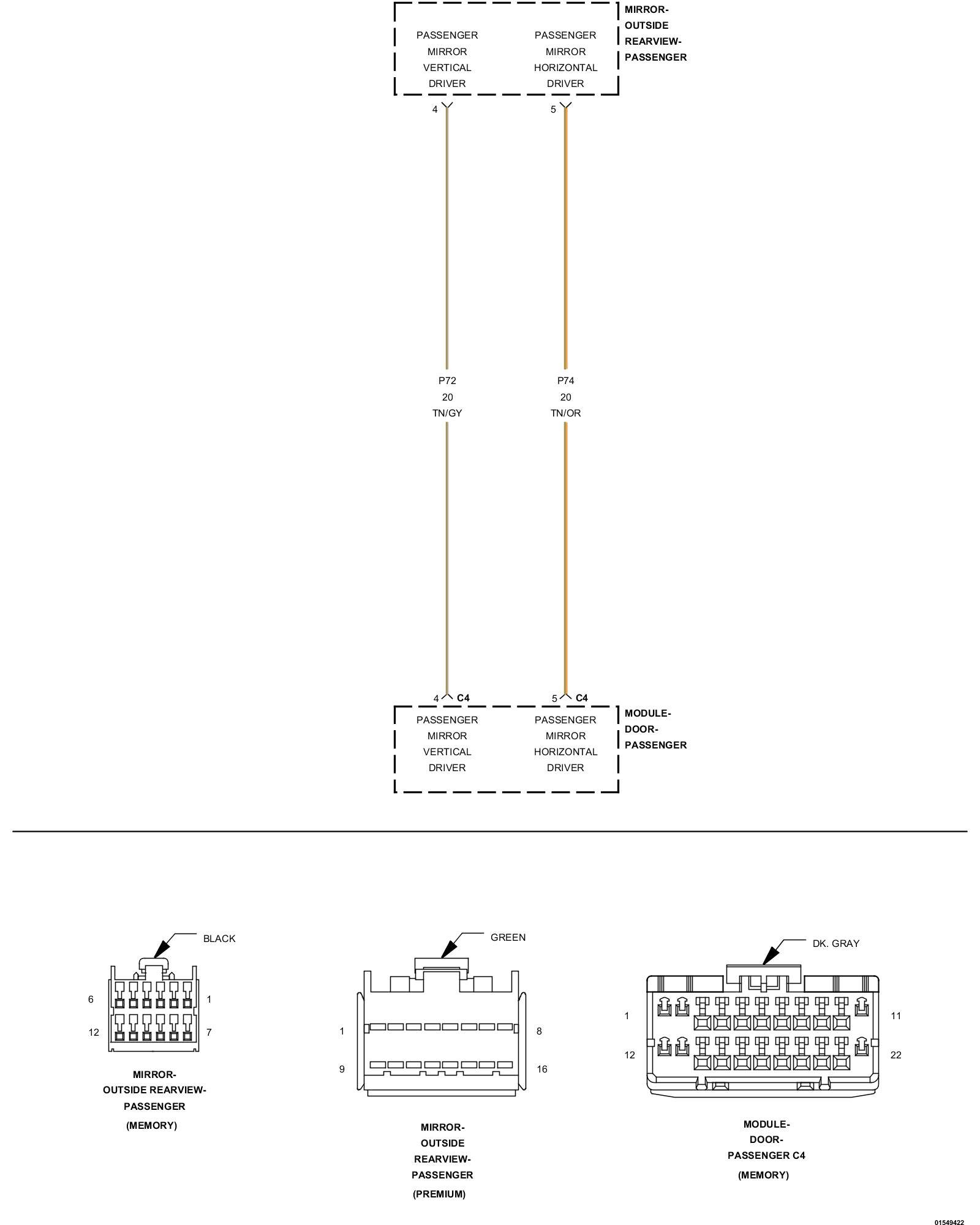

For a complete wiring diagram, refer to the Wiring Information. Electrical Diagrams

- When Monitored:
Continuously.

- Set Condition:
When the Passenger Door Module senses a value below the tolerance of the mirror motor on the Passenger Mirror Vertical Driver circuit for over 10 ms., this code will set.





1. TEST FOR INTERMITTENT CONDITION
1. Turn the ignition on.
2. With the scan tool, record and erase the DTCs.
3. Operate the Passenger Mirror Switch in all directions several times.
4. Cycle the ignition from on to off three times.
5. Turn the ignition on.
6. With the scan tool, read the DTCs.

Does the scan tool display B1D2A PASSENGER MIRROR VERTICAL MOTOR CONTROL CIRCUIT/PERFORMANCE?

Yes

- Go To 2

No

- The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

2. TEST FOR A SHORTED PASSENGER MIRROR

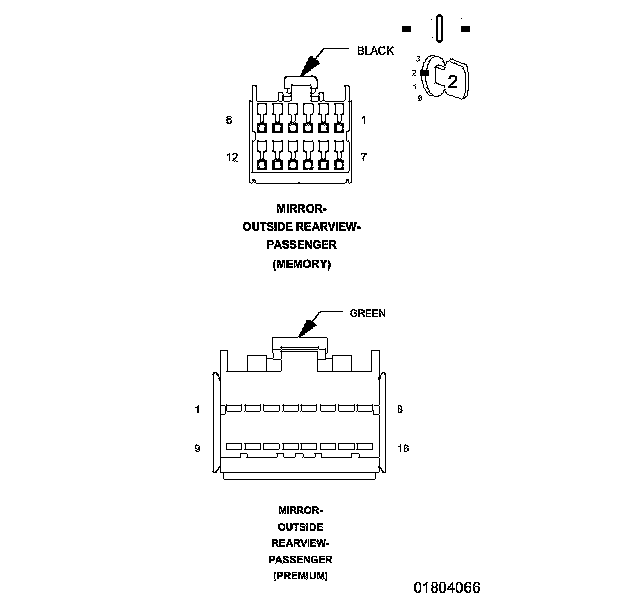

1. Disconnect the Passenger Mirror connector.
2. With the scan tool, erase the DTCs.
3. Operate the Passenger Mirror Switch in all directions several times.
4. Cycle the ignition from on to off three times.
5. Turn the ignition on.
6. With the scan tool, read the DTCs.

Does the scan tool display B1D2A PASSENGER MIRROR VERTICAL MOTOR CONTROL CIRCUIT/PERFORMANCE?

No

- Replace the Passenger Mirror.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

Yes

- Go To 3

3. TEST THE (P72) PASSENGER MIRROR VERTICAL MOTOR DRIVER WIRE FOR A SHORT TO GROUND




1. Turn the ignition off.
2. Disconnect the Passenger Door Module C4 connector.

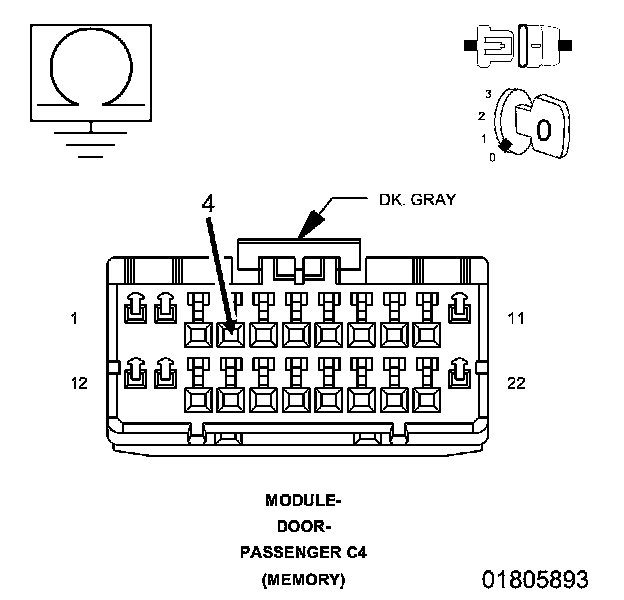

3. Measure the resistance between ground and the (P72) Passenger Mirror Vertical Motor Driver circuit.

Is the resistance below 10,000 Ohms?

Yes

- Repair the (P72) Passenger Mirror Vertical Motor Driver circuit for a short to ground.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Go To 4

4. TEST THE (P72) PASSENGER MIRROR VERTICAL MOTOR DRIVER CIRCUIT SHORTED TO THE (Z911) GROUND CIRCUIT.

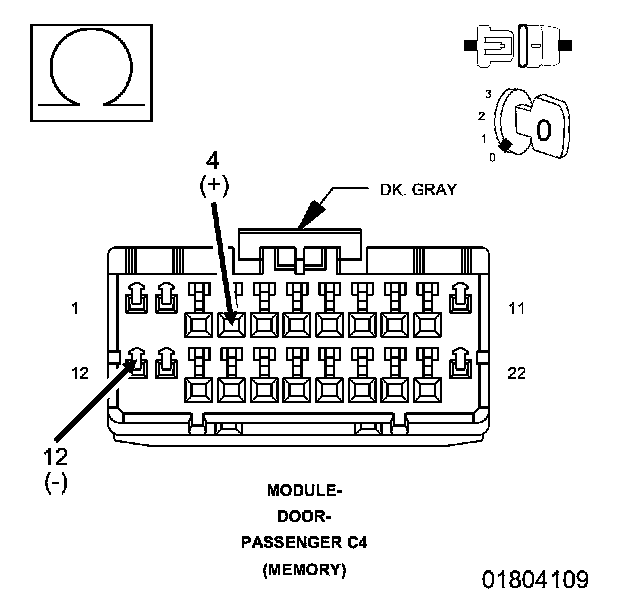

1. Measure the resistance between the (P72) Passenger Mirror Vertical Motor Driver circuit and the (Z911) Ground circuit.

Is the resistance below 10,000 Ohms?

Yes

- Repair the (P72) Passenger Mirror Vertical Motor Driver circuit for a short to the (Z911) Ground Circuit.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Replace the Passenger Door Module.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
