B2213

B2213-CCN INTERNAL

For a complete wiring diagram, refer to the Wiring Information. Electrical Diagrams

- When Monitored:
With the Cluster awake.

- Set Condition:
The Cluster detects an internal failure.





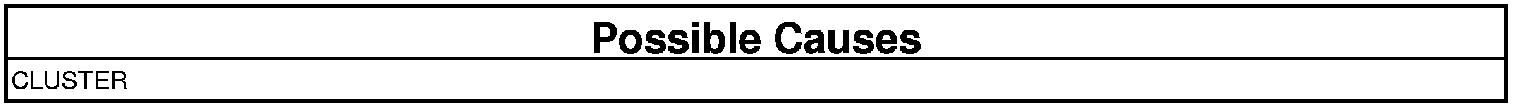

VERIFY INSTRUMENT CLUSTER OPERATION
1. With the scan tool, read Cluster DTCs.

Is DTC: B2213-CABIN COMPARTMENT NODE/CLUSTER INTERNAL active?

Yes

- Replace the Cluster.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Test complete.
