B2219

B2219-PASSENGER DOOR MODULE INTERNAL

For a complete wiring diagram, refer to the Wiring Information. Electrical Diagrams

- When Monitored:
At all times.

- Set Condition:
Whenever the module detects an EEPROM failure

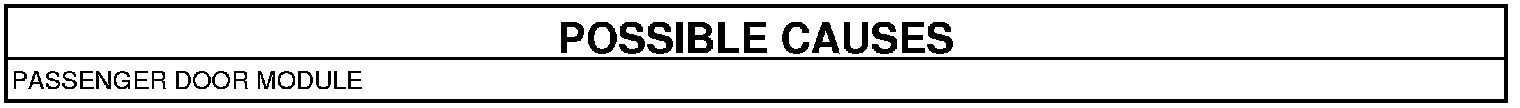

Replace the Door Module

NOTE: Anytime this code is logged, the module must be replaced.

Repair

- Replace the Door Module.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
