B2225

B2225-STEERING CONTROL MODULE INTERNAL

For a complete wiring diagram, refer to the Wiring Information. Electrical Diagrams

- When Monitored:
Continuously.

- Set Condition:
The Steering Control Module (SCM) detects an internal failure.

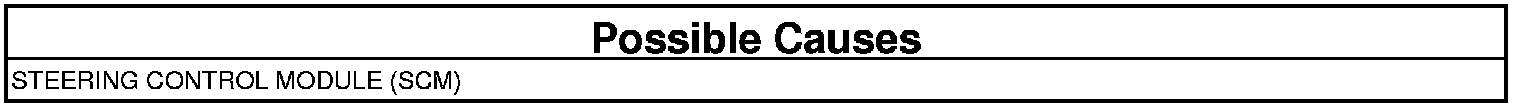

STEERING CONTROL MODULE (SCM)
1. The Steering Control Module (SCM) is reporting internal errors.

Repair

- Replace the Steering Control Module (SCM).
- Perform the BODY VERIFICATION TEST. Body Verification Test.
