B2235

B2235-LEFT FRONT HEADLAMP BALLAST ECU INTERNAL

For a complete wiring diagram, refer to the Wiring Information. Electrical Diagrams

- When Monitored:
Continuously with the Headlamps on.

- Set Condition:
The code will set when a Check Sum error is detected.





VERIFY DTC B2235-LEFT FRONT HEADLAMP BALLAST ECU INTERNAL IS ACTIVE

NOTE: If a DTC is set, erase the DTC and attempt to reset the DTC. If the DTC resets, follow test.

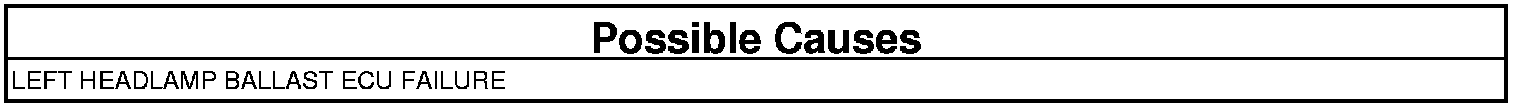

1. This is an internal Ballast ECU failure.

Does the DTC reset and read B2235-LEFT FRONT HEADLAMP BALLAST ECU INTERNAL?

Repair

- Replace the Left Side Headlamp Ballast ECU.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
