B259D

B259D-00-REAR RIGHT DOOR HANDLE SENSE

For a complete wiring diagram, refer to the Wiring Information. Electrical Diagrams

- When Monitored:
During vehicle start up.

- Set Condition:
During the vehicle start up procedure, the module looks at the door handle circuits. If the sense or return circuits are open or shorted, for over two seconds, this code will set.





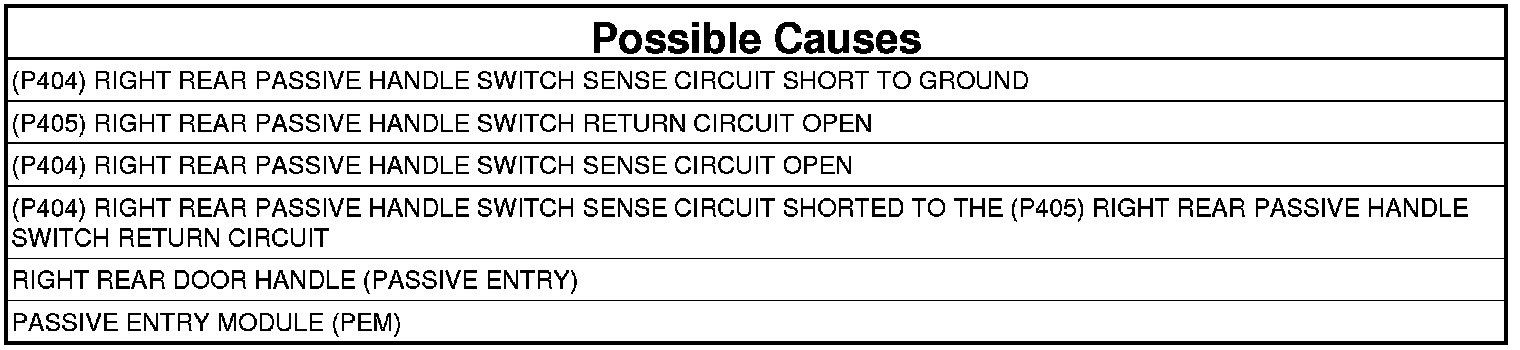

1. TEST FOR INTERMITTENT CONDITION
1. Turn the ignition on.
2. Using the scan tool, record and erase the DTCs.
3. Start the vehicle and let run for 30 seconds.
4. Turn the engine off (ignition on).
5. Wait 30 seconds.
6. Using the scan tool, read the DTCs.

Does the scan tool display B259D-00-REAR RIGHT DOOR HANDLE SENSE?

Yes

- Go To 2

No

- The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

2. (P404) RIGHT REAR PASSIVE HANDLE SWITCH SENSE CIRCUIT OPEN
1. Turn the ignition off.
2. Disconnect the Right Rear Passive Handle Switch harness connector.
3. Turn the ignition on.
4. Measure the voltage between the (P404) Right Rear Passive Handle Switch Sense circuit and ground.

Is the voltage above 10.5 Volts?

Yes

- Go To 3

No

- Go To 5

3. (P405) RIGHT REAR PASSIVE HANDLE SWITCH RETURN CIRCUIT OPEN
1. Turn the ignition off.
2. Measure the resistance between ground and the (P405) Right Rear Passive Handle Switch Return circuit.

Is the resistance below 2.5 Ohms?

Yes

- Replace the Right Rear Door Handle (Passive Entry).
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Go To 4

4. (P405) RIGHT REAR PASSIVE HANDLE SWITCH RETURN WIRE OPEN
1. Disconnect the Passive Entry Module C1 Harness connector.
2. Measure the resistance of the (P405) Right Rear Passive Handle Switch Return circuit between the PEM C1 harness connector and the Right Rear Passive Handle Switch harness connector.

Is the resistance below 2.0 Ohms?

Yes

- Replace the Passive Entry Module.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Repair the (P405) Right Rear Passive Handle Switch Return wire for an open.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

5. (P404) RIGHT REAR PASSIVE HANDLE SWITCH SENSE WIRE OPEN
1. Turn the ignition off.
2. Disconnect the Passive Entry Module C1 harness connector.
3. Measure the resistance of the (P404) Right Rear Passive Handle Switch Sense wire between the PEM C1 harness connector and the Right Rear Passive Handle Switch harness connector.

Is the resistance below 2.0 Ohms?

Yes

- Go To 6

No

- Repair the (P404) Right Rear Passive Handle Sense wire for an open.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

6. (P404) RIGHT REAR PASSIVE HANDLE SWITCH SENSE WIRE SHORT TO GROUND
1. Measure the resistance between ground and the (P404) Right Rear Passive Handle Switch Sense wire.

Is the resistance below 10,000 Ohms?

Yes

- Repair the (P404) Right Rear Passive Handle Switch Sense wire for a short to ground.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Go To 7

7. (P404) RIGHT REAR PASSIVE HANDLE SWITCH SENSE CIRCUIT SHORTED TO THE (P405) RIGHT REAR PASSIVE HANDLE SWITCH RETURN CIRCUIT
1. Measure the resistance between the (P404) Right Rear Passive Handle Switch Sense circuit and the (P405) Right Rear Passive Handle Switch Return circuit.

Is the resistance below 10,000 Ohms?

Yes

- Repair the (P404) Right Rear Passive Handle Switch Sense circuit for a short to the Right Rear Passive Handle Switch Return circuit.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Replace the Passive Entry Module.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
