C124B

C124B-XBW RULE VIOLATION

For a complete wiring diagram, refer to the Wiring Information. Electrical Diagrams

- When Monitored:
Continuously monitored with the engine running and the Adaptive Cruise Control (ACC) Module in normal mode.

- Set Condition:
A ready conflict between the ACC module and the Electronic Stability Program (ESP) system has occurred. The ACC module will disable the ACC system and the ACC OFF message will display in the Cabin Compartment Node (CCN). Once the Diagnostic Trouble Code (DTC) goes to stored, the ACC system will return to normal operation. The DTC will be cleared after the ACC Module sees 100 consecutive key cycles of the STORED DTC.





For gasoline engines, always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. Pre-Diagnostic Troubleshooting Procedure.

Diagnostic Test

NOTE:
- To help in the service of the ACC System, it is recommended speaking to the customer to find out what type of environment they were driving in when the cruise concern took place. Heavy rain, snow, ice, and fog can cause the ACC system to become unavailable. This should be considered normal operation and no repair is necessary.

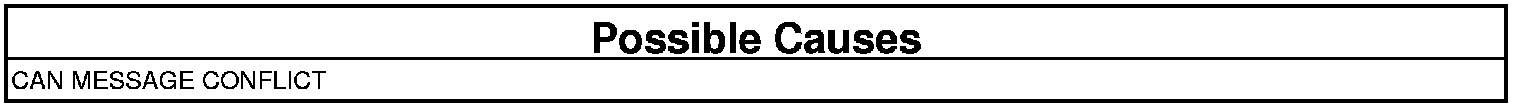

- Repair all ABS and ESP DTCs. There was a conflicting message between the ESP system the ACC module. The DTC can be cleared. No repair is necessary.
