U1414

U1414-IMPLAUSIBLE/MISSING ECU CONFIGURATION DATA

For a complete wiring diagram refer to the Wiring Information. Electrical Diagrams

- When Monitored:
With the ignition on. The ORC on board diagnostics continuously monitors the CAN Bus message from the TIPM containing the ORC Configuration Data.

- Set Condition:
This DTC will set if the appropriate CAN Bus message is not received by the ORC.





Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. Restraints System Pre-Diagnostic Procedure.

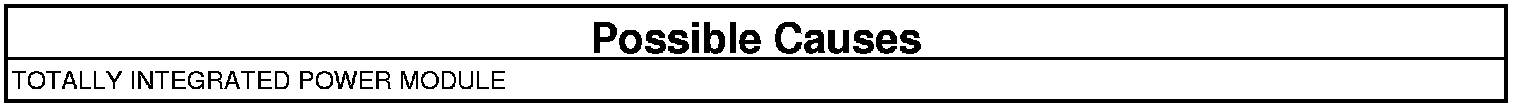

TOTALLY INTEGRATED POWER MODULE FAILURE
1. Turn the ignition on.
2. With the scan tool, read TIPM DTCs.

Does the scan tool display any Totally Integrated Power Module DTCs?

Yes

- Diagnose and repair the DTC(s). Repair all TIPM active DTCs and before diagnosing the ORC DTCs.

No

- Replace the Totally Integrated Power Module.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
