Power Lock Switch - Removal
REMOVALNOTE: A battery reconnect procedure must be performed anytime the battery has been disconnected. Battery Reconnection . 1.
Disconnect and isolate the battery negative cable.
2.
Remove the door trim panel
Front Door Trim Panel - Removal.
3.

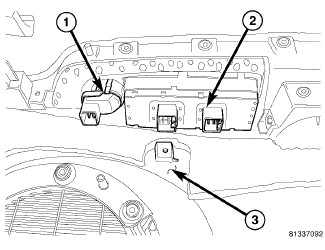

Using a flat bladed tool, remove the window/lock switch (2) from the door trim panel.
