Left Door Locks Inoperative

LEFT DOOR LOCKS INOPERATIVE - (LHD ONLY)

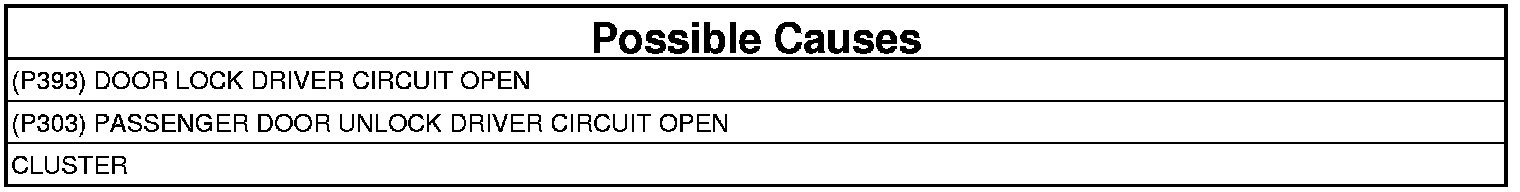

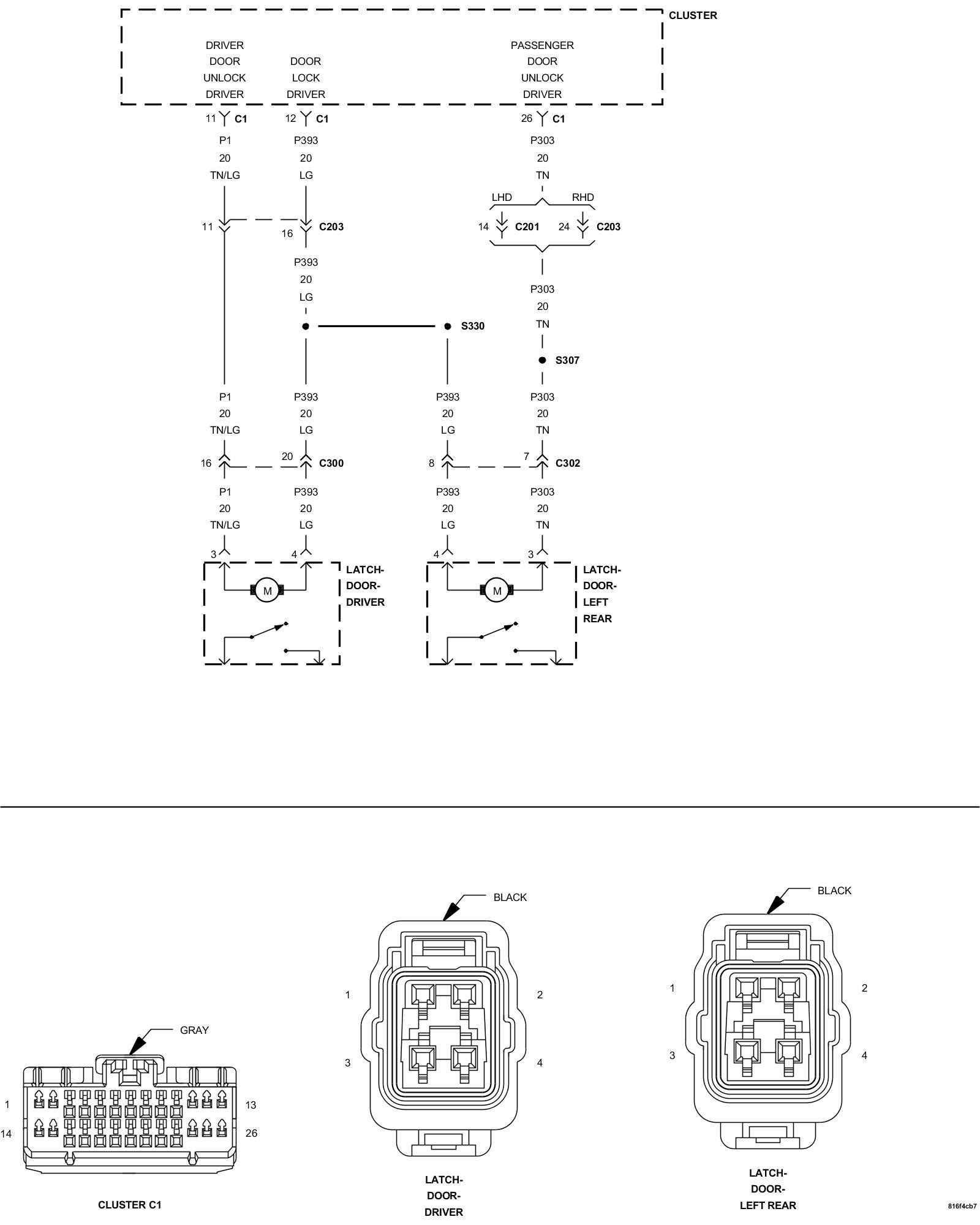

For a complete wiring diagram, refer to the Wiring Information. Electrical Diagrams






Theory of Operation

This test is only for Left Hand Drive vehicles because on the Right Hand Drive vehicles the Right Rear door lock is connected with the Left Front door and the Left Rear door lock is connected with the Right Front (driver) door.

1. CHECK (P393) DOOR LOCK DRIVER CIRCUIT FOR AN OPEN




1. Turn the ignition off.
2. Remove the left door inner trim panel to gain access to the door latch connector.
3. Disconnect the Left Rear Door Latch connector.
4. Disconnect the Instrument Cluster C1 connector.

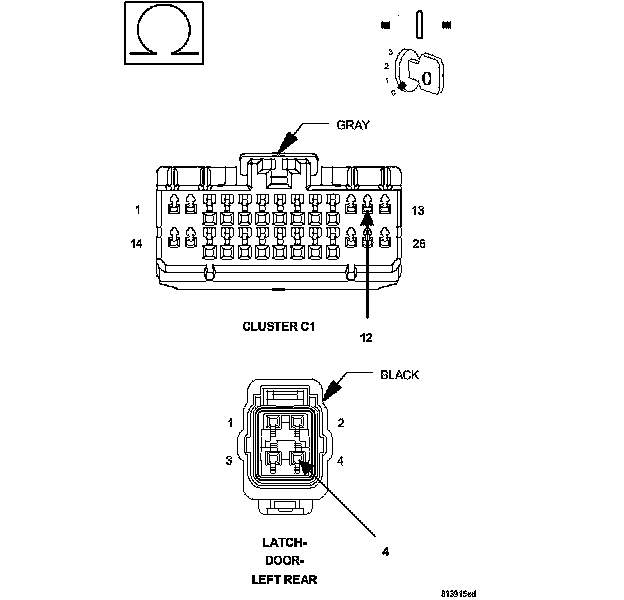

5. Measure the resistance of the (P393) Door Lock Driver circuit between the Cluster C1 connector and the Left Rear Door Latch connector.

Is the resistance below 2.0 ohms?

Yes

- Go To 2

No

- Repair the (P393) Door Lock Driver circuit for an open.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

2. CHECK (P303) PASSENGER DOORS UNLOCK DRIVER CIRCUIT FOR AN OPEN

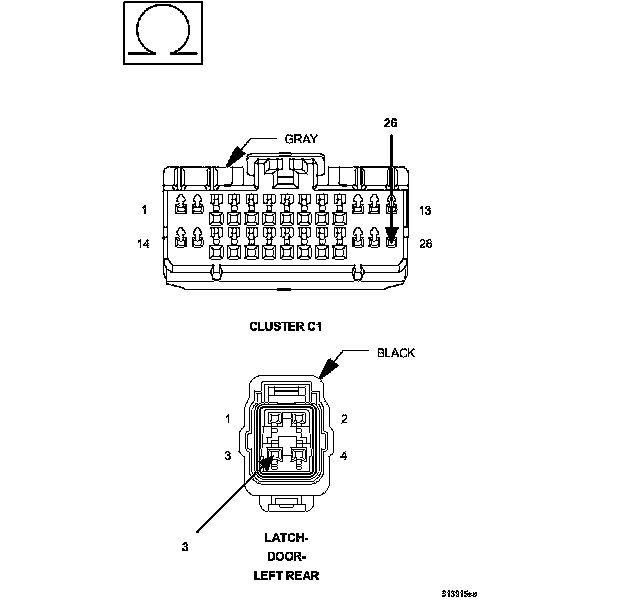

1. Measure the resistance of the (P303) Passenger Doors Unlock Driver circuit between the Cluster C1 connector and the Left Rear Door Latch connector.

Is the resistance below 2.0 ohms?

Yes

- Replace the Cluster.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Repair the (P303) Passenger Doors Unlock Driver circuit for an open.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
