C313 (Except Police/Except Base) (Body Side) 14 Way






Connector (EXCEPT POLICE/EXCEPT BASE) - (BODY SIDE) 14 WAY

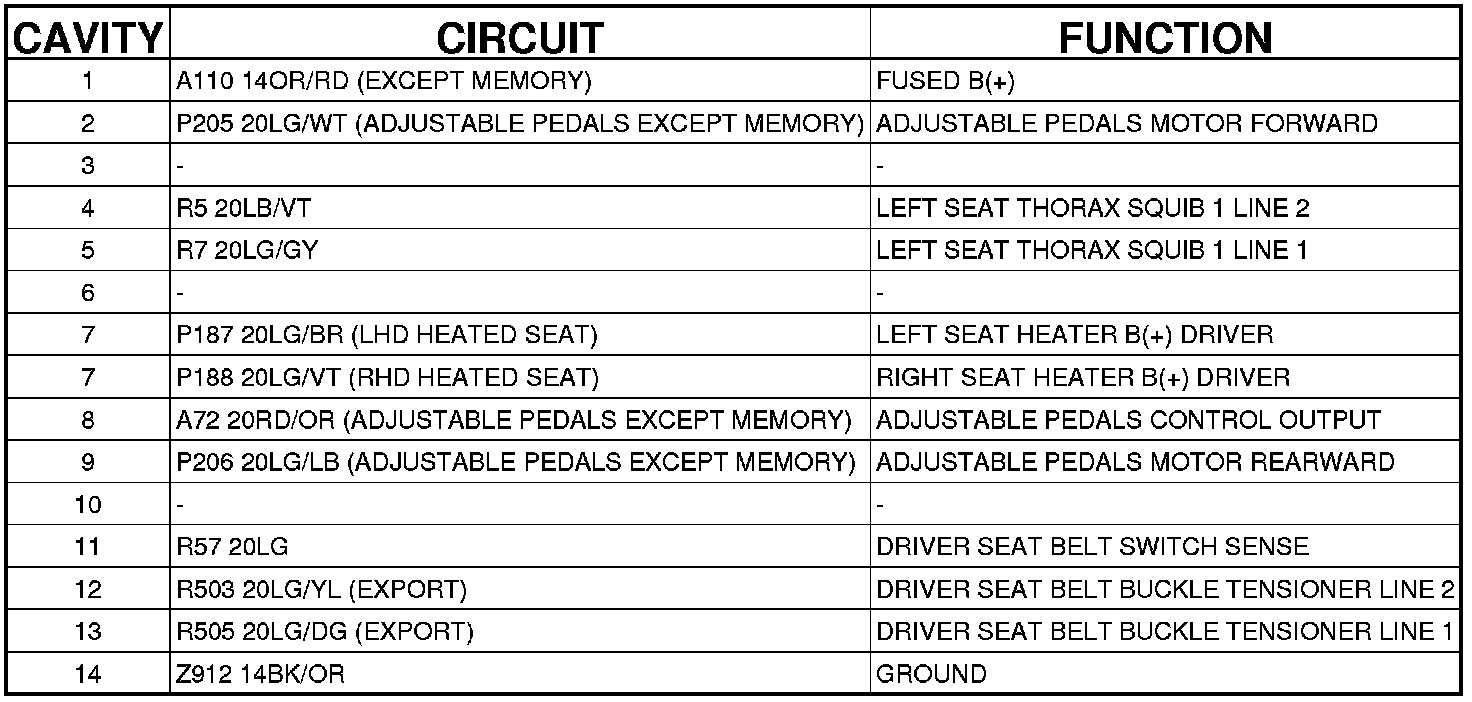

C313 (EXCEPT POLICE/EXCEPT BASE) - (BODY SIDE) 14 WAY
