C317 (DVD) (Instrument Panel Side) 26 Way
C317 (DVD) (Instrument Panel Side) 26 Way

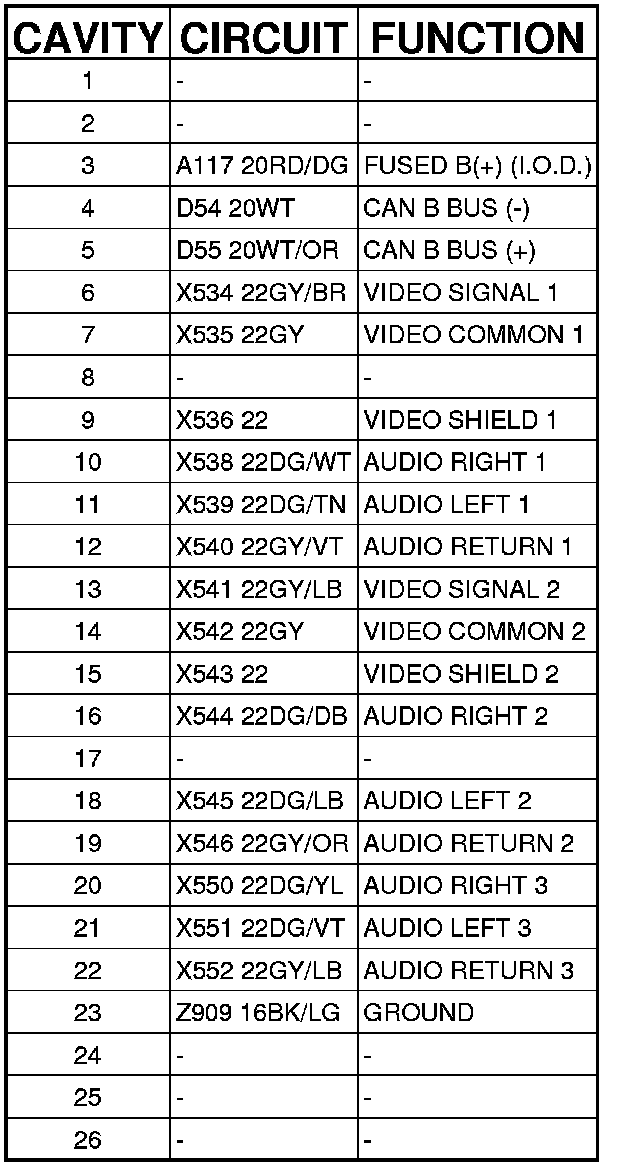

Connector (DVD) - (INSTRUMENT PANEL SIDE) 26 WAY
C317 (DVD) - (INSTRUMENT PANEL SIDE) 26 WAY
