Park Assist Module C1 (Parktronics) (Body) 12 Way
Park Assist Module C1 (Parktronics) (Body) 12 Way

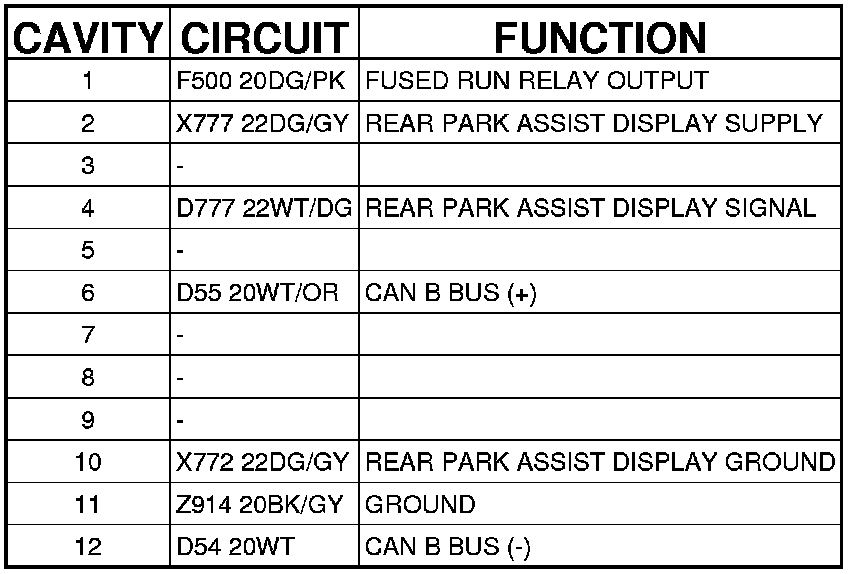

Connector C1 (PARKTRONICS) - (BODY) 12 WAY

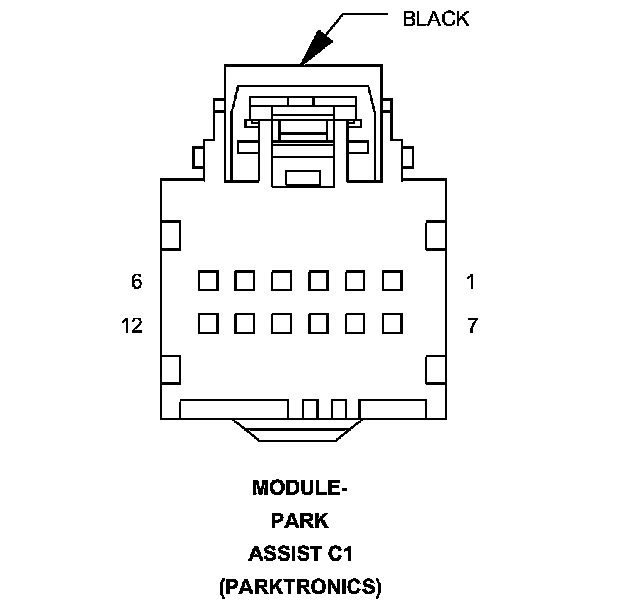

MODULE-PARK ASSIST (PARKTRONICS) - (BODY) 12 WAY
