Condenser, Ignition
>>
Ignition Capacitor 1 1 Way
Ignition Capacitor 1 1 Way

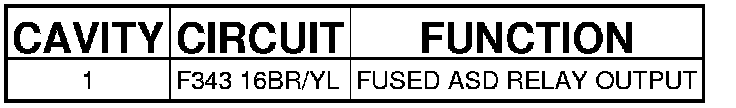

Connector (2.7L/3.5L) - (ENGINE) 1 WAY

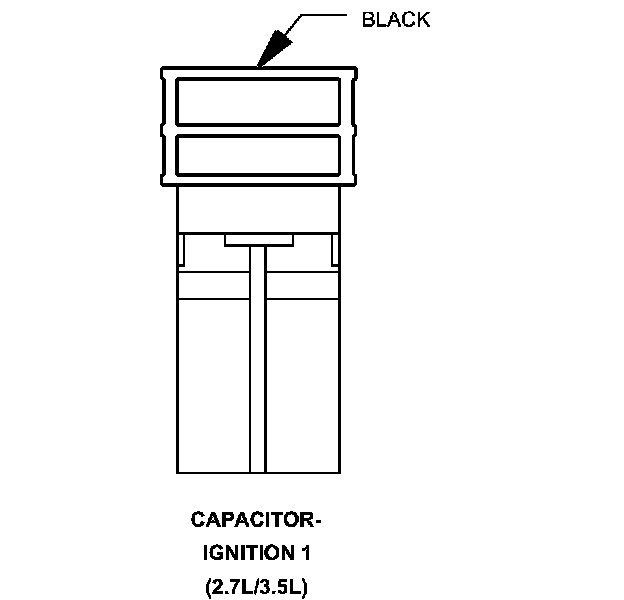

CAPACITOR-IGNITION 1 (2.7L/3.5L) - (ENGINE) 1 WAY
