Coolant Temperature Sensor/Switch (For Computer)
Coolant Temperature Sensor/Switch (For Computer)

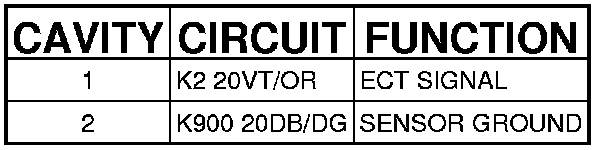

Connector (2.7L) - (ENGINE) 2 WAY

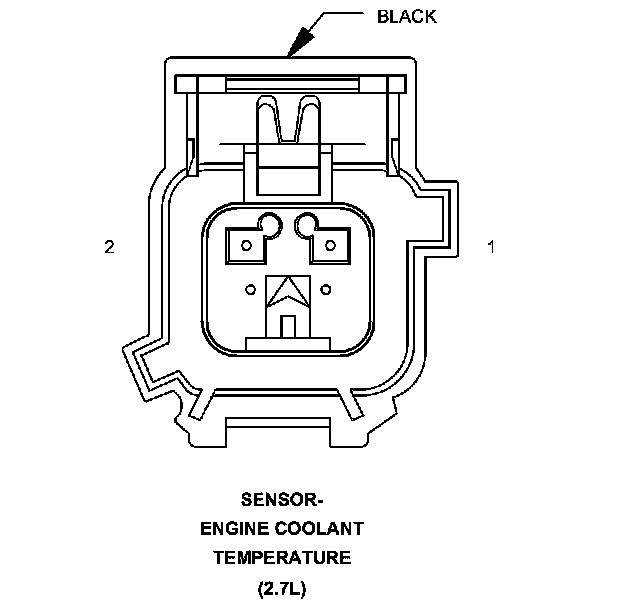

SENSOR-ENGINE COOLANT TEMPERATURE (2.7L) - (ENGINE) 2 WAY
