Cruise Control Module
Cruise Control Module

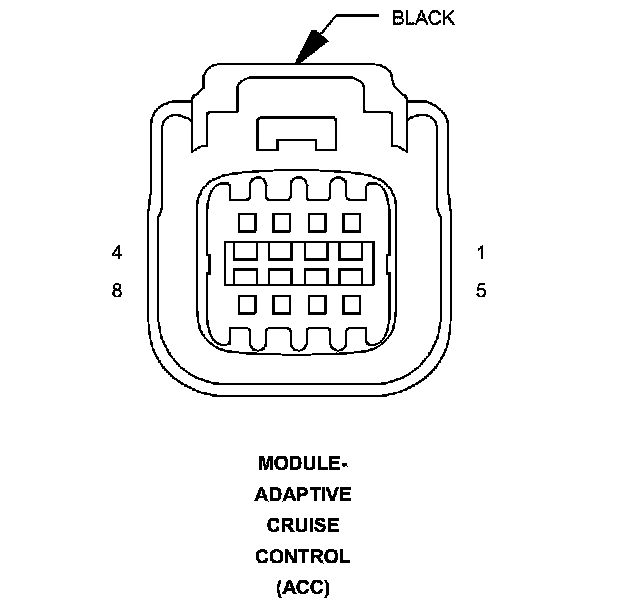

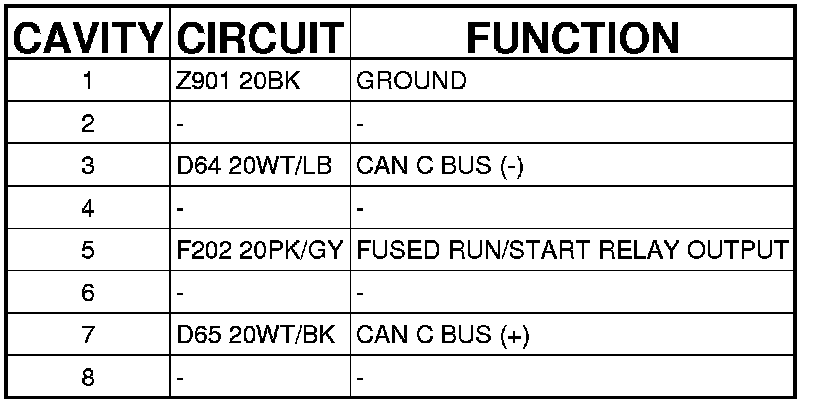

Connector (ACC) - (HEADLAMP AND DASH) 8 WAY
MODULE-ADAPTIVE CRUISE CONTROL (ACC) - (HEADLAMP AND DASH) 8 WAY
