Driver/Vehicle Information Display






Connector - (HEADLINER) 6 WAY

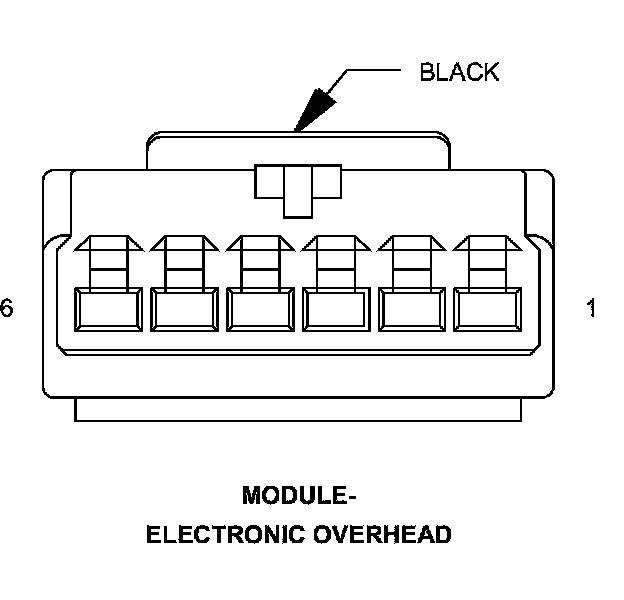

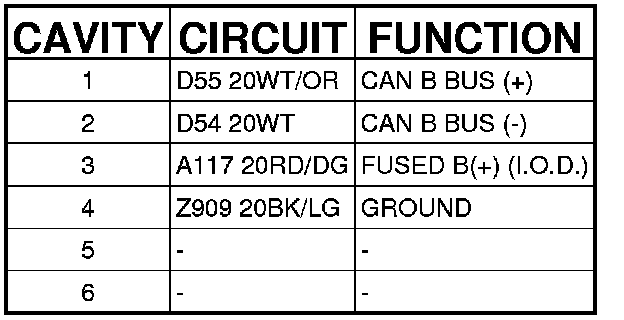

MODULE-ELECTRONIC OVERHEAD - (HEADLINER) 6 WAY
