Dodge and Ram
>>
2009
>>
Charger V6-2.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Memory Positioning Switch
Memory Positioning Switch

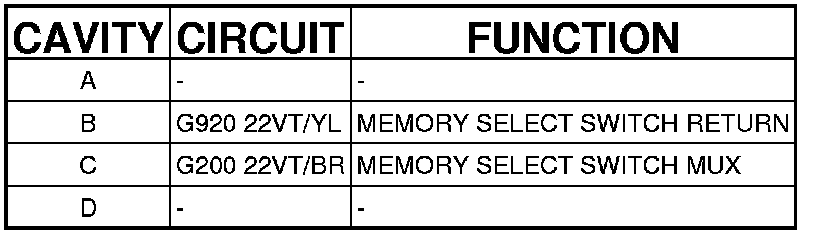

Connector - (FRONT DOOR) 4 WAY

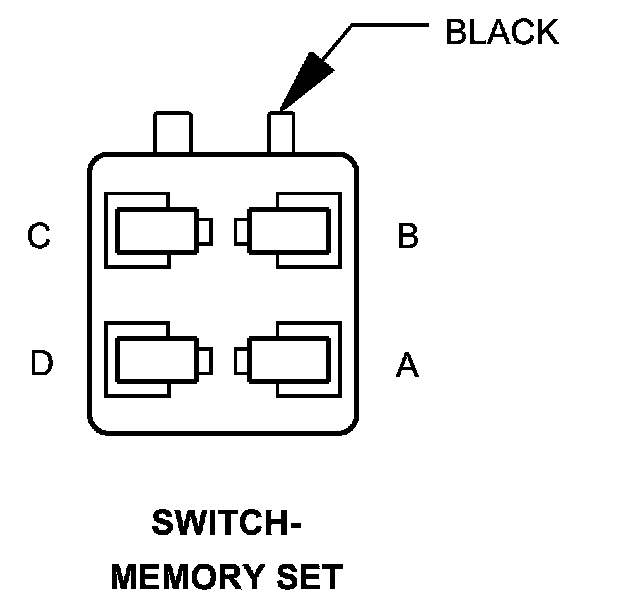

SWITCH-MEMORY SET - (FRONT DOOR) 4 WAY
