Radiator Cooling Fan Motor Relay
>>
Radiator Fan High/Low Relay Control (In TIPM) 5 Way
Radiator Fan High/Low Relay Control (In TIPM) 5 Way

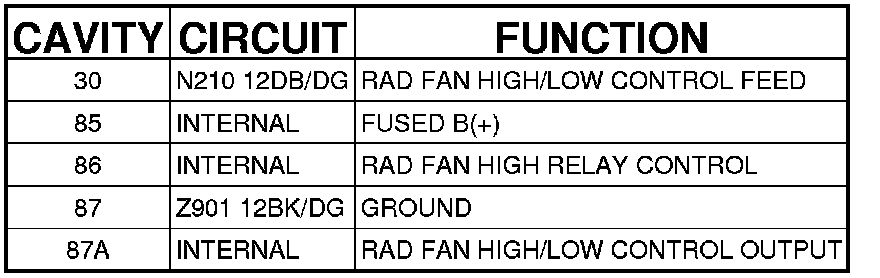

Connector - (IN TIPM) 5 WAY

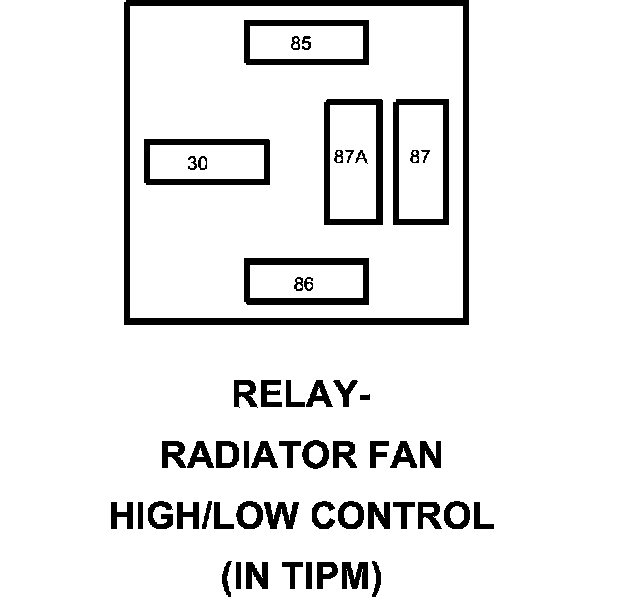

RELAY-RADIATOR FAN HIGH/LOW CONTROL - (IN TIPM) 5 WAY
