Home
>>
Dodge and Ram
>>
2009
>>
Charger V6-2.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Speaker
>>

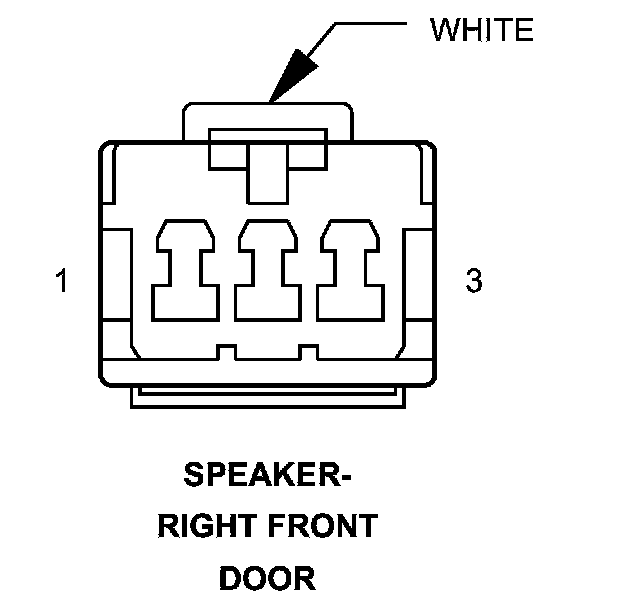

Right Front Door Speaker (Front Door) 3 Way
Right Front Door Speaker (Front Door) 3 Way

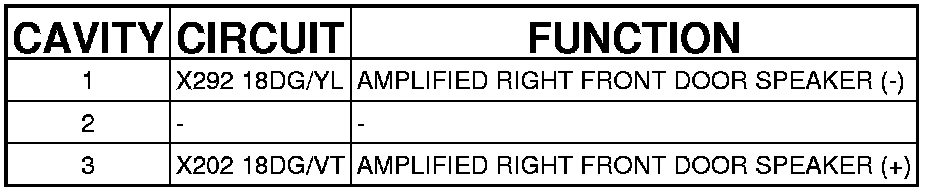

Connector - (FRONT DOOR) 3 WAY
SPEAKER-RIGHT FRONT DOOR - (FRONT DOOR) 3 WAY
