Trunk / Liftgate Switch
Trunk / Liftgate Switch

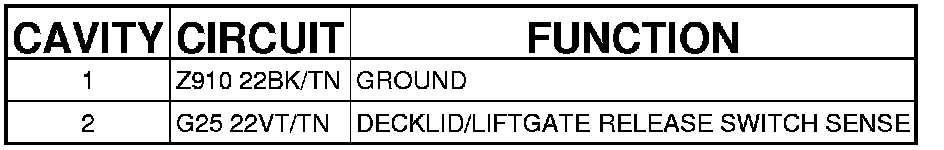

Connector (LX48) - (INSTRUMENT PANEL) 2 WAY

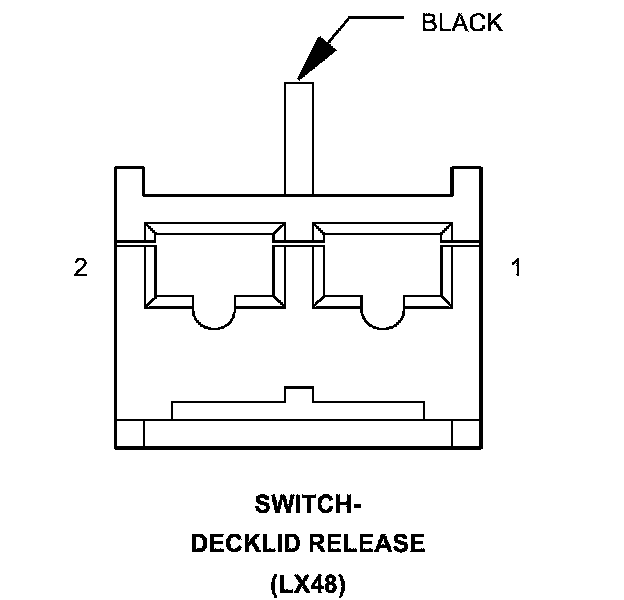

SWITCH-DECKLID RELEASE (LX48) - (INSTRUMENT PANEL) 2 WAY
